PROPEL ADVANCED SL 1

Pro-Level Aero Race Bike for All-Out Speed

Propel Advanced SL 1 is built for the decisive moments of racing: the final 200 meters, the solo attack, the closing of a critical gap. Its Advanced SL-grade composite frameset, optimized AeroSystem Shaping, and fully integrated cockpit deliver class-leading aerodynamics, precise adjustability, and race-winning stiffness-to-weight. Lighter, faster, and more efficient, it turns every watt into maximum speed.

DISCOVER

INTEGRATED AERODYNAMICS

AeroSystem Shaping, developed through CFD analysis and dynamic wind-tunnel testing, optimizes tube profiles at every yaw angle. Truncated ellipse airfoil tube shapes and the Contact SLR Aero cockpit work together as a single aero system, delivering best-in-class aerodynamic performance in real-world racing conditions.

EASIER ADJUSTABILITY

Internal cable routing through the stem and head tube simplifies cockpit tuning and maintenance. Bar and stem changes, position refinements, and fit adjustments are quicker and cleaner, allowing riders to fine‑tune performance and riding posture without compromising the fully integrated aero design.

RACE-WINNING EFFICIENCY

The Advanced SL-grade composite frameset uses Giant’s pro-level carbon materials and layup techniques, saving approximately 150 grams over the previous generation while further improving stiffness-to-weight. The result is explosive responsiveness under power, efficient climbing, and a bike that rewards every effort with more speed.

Equipment

SizeXS, S, M, M/L, L, XL

ColorUltra Navy / Azure / Chrome

FrameAdvanced SL-grade Composite, 12×142mm thru-axle, integrated seatpost, disc

ForkAdvanced SL-grade Composite, full-composite OverDrive Aero steerer, 12×100mm thru-axle, disc

HandlebarsGiant Contact SLR Aero — XS: 38cm, S: 38cm, M: 40cm, M/L: 40cm, L: 42cm, XL: 42cm

Handle gripStratus Lite 2.0

StemGiant Contact SLR Aero — XS: 80mm, S: 90mm, M: 100mm, M/L: 110mm, L: 110mm, XL: 120mm

SeatpostAdvanced SL-grade Composite, integrated design, -5/+15mm offset

SaddleGiant Fleet SLR

Shift GripShimano Ultegra Di2 ST-R8170

Front transmissionShimano Ultegra Di2 FD-R8150

Rear transmissionShimano Ultegra Di2 RD-R8150

Brake systemShimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors — 160mm [F] / 140mm [R]

Brake gripShimano Ultegra Di2 hydraulic

FlywheelShimano Ultegra, 12-speed, 11×30

ChainShimano Ultegra CN-M8100

Large chainringShimano Ultegra 36/52 with Giant Power Pro power meter — XS: 165mm, S: 165mm, M: 170mm, M/L: 170mm, L: 172.5mm, XL: 172.5mm

Bottom BracketShimano, Press Fit

RimsGiant SLR 1 50 Carbon Disc WheelSystem — 50mm [F] / 50mm [R]

Hub[F] Giant Low Friction Hub, CenterLock / [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle

SpokesSapim

TireCADEX Aero, tubeless, 700×25c (26.5mm), folding

Max tire clearance32mm

OtherComputer mount, water bottle cages, tubeless prepared, 32mm max tire size

WeightFor the most accurate weight, please request an in-store measurement. Actual weight varies by frame size and components.

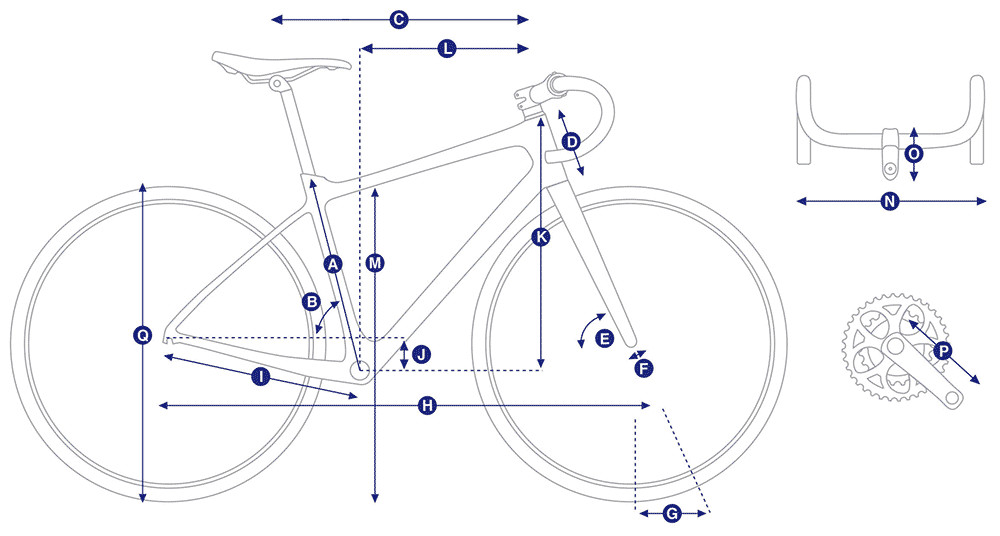

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement	XS	S	M	M/L	L	XL
A Seat tube length (mm)	680	710	740	770	800	830
B Seat tube angle	74.5°	74.0°	73.5°	73.0°	73.0°	72.5°
C Top tube length (mm)	520	535	550	565	580	600
D Head tube length (mm)	120	130	145	165	185	200
E Head tube angle	71.0°	72.3°	73.0°	73.0°	73.0°	73.0°
F Fork rake (mm)	45	45	45	45	45	45
G Trail (mm)	70.5	62.5	57.8	57.8	57.8	57.8
H Wheelbase (mm)	976	977	980	991	1006	1020
I Chain stay length (mm)	405	405	405	405	405	405
J Bottom bracket drop (mm)	72	70	70	67	67	67
K Stack (mm)	517	528	545	562	581	596
L Reach (mm)	376	383	388	393	402	412
M Stand over height (mm)	734	755	775	794	821	834
N Handlebar width (mm)	380	380	400	400	420	420
O Stem length (mm)	80	90	100	110	110	120
P Crank length (mm)	165	165	170	170	172.5	172.5
