Precision Aero Race Bike — Lighter, Faster, and Built for Every Sprint

The new Propel Advanced Pro 0-Di2 is engineered to turn every watt into raw speed. Whether riding in a leading group, launching a breakaway, or sprinting to the finish, its redesigned frame delivers improved rigidity, enhanced compliance, and reduced drag across every riding condition. Lighter, smoother, and more aerodynamically refined — this is precision performance at its most complete.

Size Options:

XS, S, M, ML

Frame:

Advanced-Grade Composite

Groupset:

Shimano Ultegra Di2 12-speed

Wheels:

Giant SLR 0 50 Carbon WheelSystem

DISCOVER

INSTANT EXPLOSIVE SPEED

The new Propel Advanced Pro 0-Di2 is more responsive and dynamic than ever at the moment of maximum effort. A lighter frameset with enhanced torsional and pedaling rigidity ensures immediate, lossless power transfer — so every attack, chase, and sprint feels sharper and more direct than the generation before it.

SUSTAINED HIGH-SPEED COMFORT

The redesigned Vector carbon seatpost delivers significantly improved vertical compliance over its predecessor, while the integrated cockpit and front fork effectively absorb front-end road vibration. Expanded tire clearance supports widths up to 32mm, reducing fatigue over long efforts and allowing you to maintain higher sustained speeds throughout any race.

PEAK AERODYNAMIC PERFORMANCE

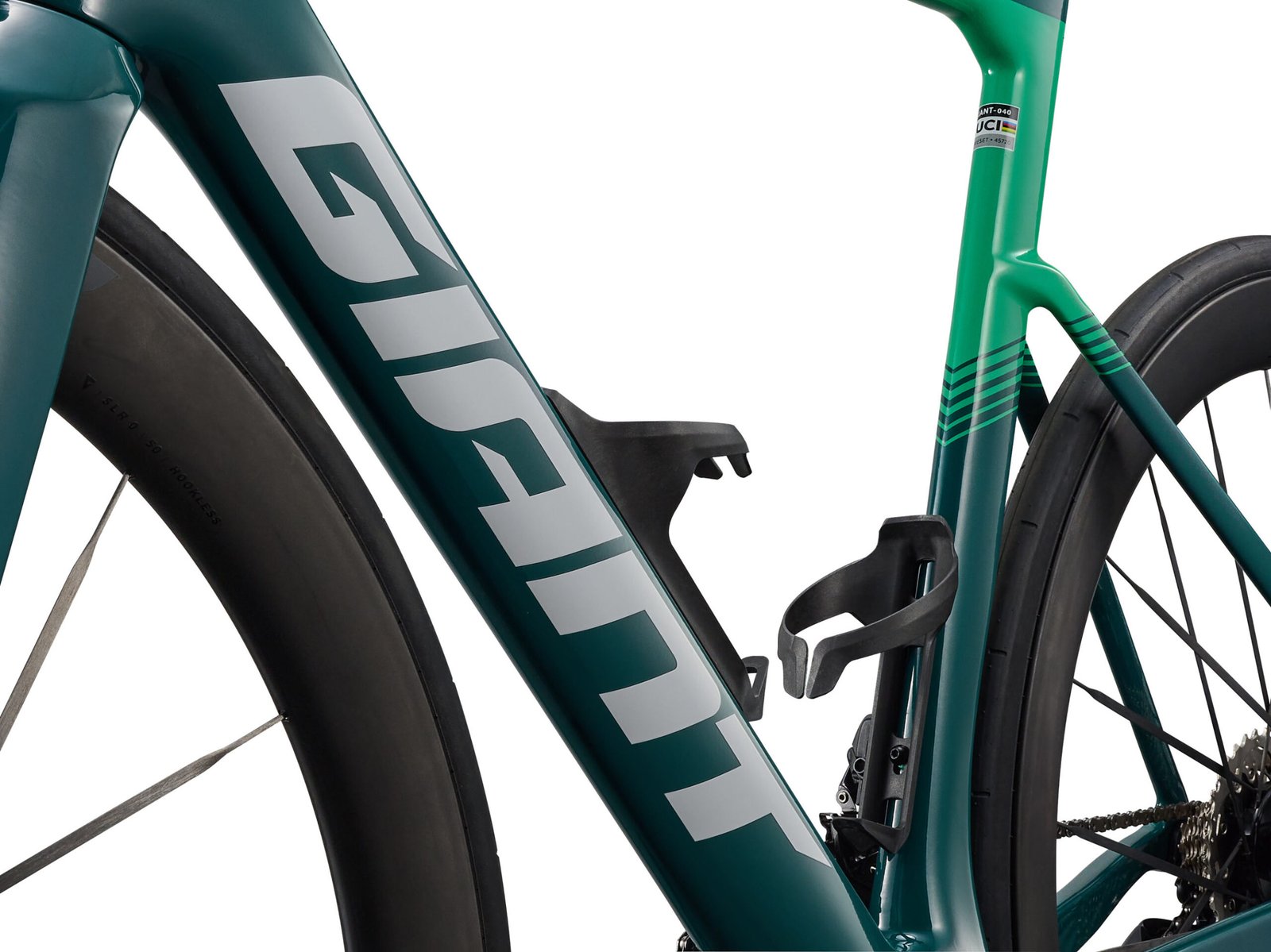

The AeroSystem frameset, integrated cockpit, Giant SLR 0 50 carbon wheel system, and CADEX Aero tubeless tires form a fully unified, drag-minimized system. From wind-tunnel-tested frame tubes to the aerodynamic bottle cage design, every element works together to reduce air resistance and rolling drag — keeping you faster at the front of the group, on the attack, or in a solo breakaway.

Equipment

SizeXS, S, M, M/L
ColorClassic Racing Green
FrameAdvanced-Grade Composite, 12×142mm thru-axle, disc
ForkAdvanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12×100mm thru-axle, disc
HandlebarsGiant Contact SLR 0 Aero Integrated — XS/S: 380/360mm, M/M/L: 400/370mm
Handle gripStratus Lite 2.0
StemGiant Contact SLR 0 Aero Integrated — XS: 80mm, S: 90mm, M: 100mm, M/L: 110mm
SeatpostGiant Vector, Composite, -5/+15mm offset
SaddleGiant Fleet SL
Shift GripShimano Ultegra Di2 ST-R8170
Front transmissionShimano Ultegra Di2 FD-R8150
Rear transmissionShimano Ultegra Di2 RD-R8150
Brake systemShimano Ultegra Di2 Hydraulic, Shimano RT-CL800 Rotors — 160mm [F] / 140mm [R]
Brake gripShimano Ultegra Di2 Hydraulic
FlywheelShimano Ultegra, 12-speed, 11–34T
ChainShimano Ultegra CN-M8100

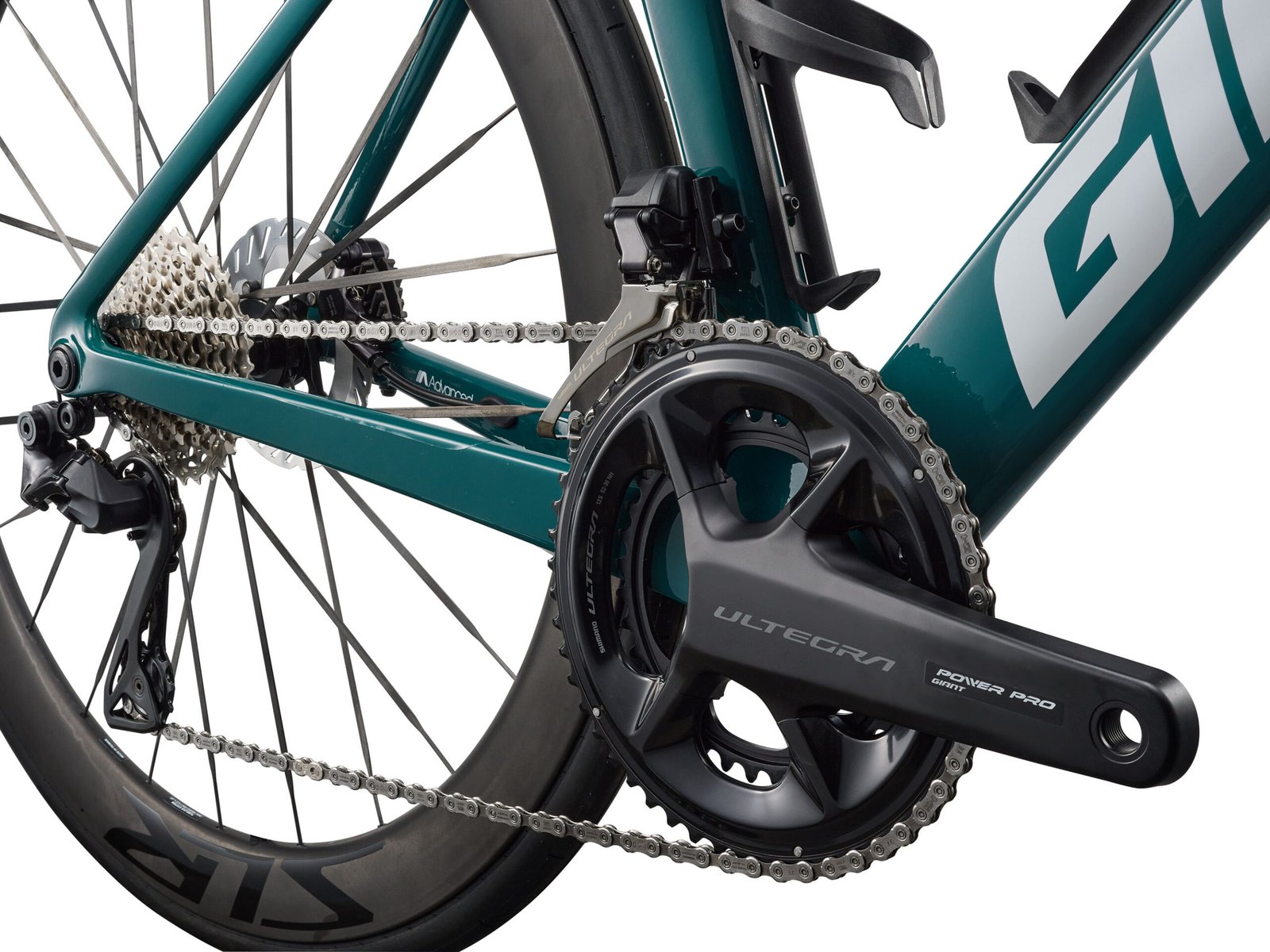

Large chainringShimano Ultegra 36/52T with Giant Power Pro Power Meter — XS/S: 165mm, M/M/L: 170mm
Bottom BracketShimano, Press Fit
RimsGiant SLR 0 50 Carbon WheelSystem — 50mm [F] / 50mm [R]
Hub[F] Giant Aero Hub, CenterLock / [R] Giant Aero Hub, 40T ratchet driver, CenterLock, 12mm thru-axle
SpokesAero Carbon
TireCADEX Aero, Tubeless, 700×28c, folding
OtherComputer mount, water bottle cages, tubeless prepared, 32mm max tire size
WeightFor the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

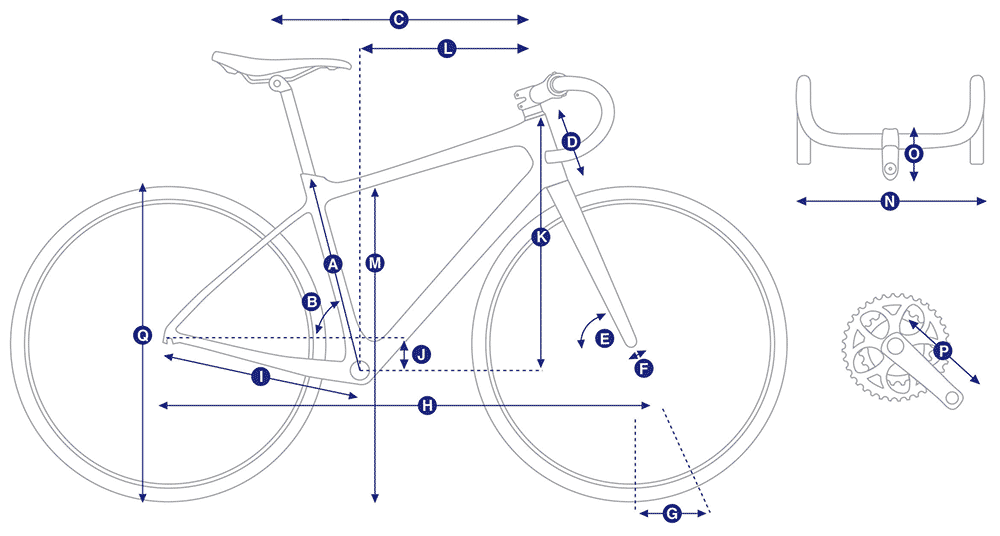

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement XS S M M/L
A Length of the seat (upright) tube (mm) 484505528.5554
B The angle of the seat (riser) 74.5°74.0°73.5°73.0°
C Top tube length (mm) 520535550565
D Head tube length (mm) 115127145165
E Head tube angle 71.5°72.5°73.0°73.0°
F Fork (mm) 45454545
G Trail (mm) 67.861.458.358.3
H Front and rear track (mm) 971973980990
I Rear fork length (mm) 405405405405
J Bottom drop height (mm) 727269.569.5
K Head bowl to bracket height (mm) 515530546565
L Head bowl to bracket length (mm) 377383388392
M Upper tube to ground height (mm) 746764787808
N Handle width (mm) 380380400400
O Tap length (mm) 8090100110
P Crank length (mm) 165165170170
Q Wheelset size 700C700C700C700C
