Premium Six-Passenger UTV Built for Power, Comfort, and Advanced Technology

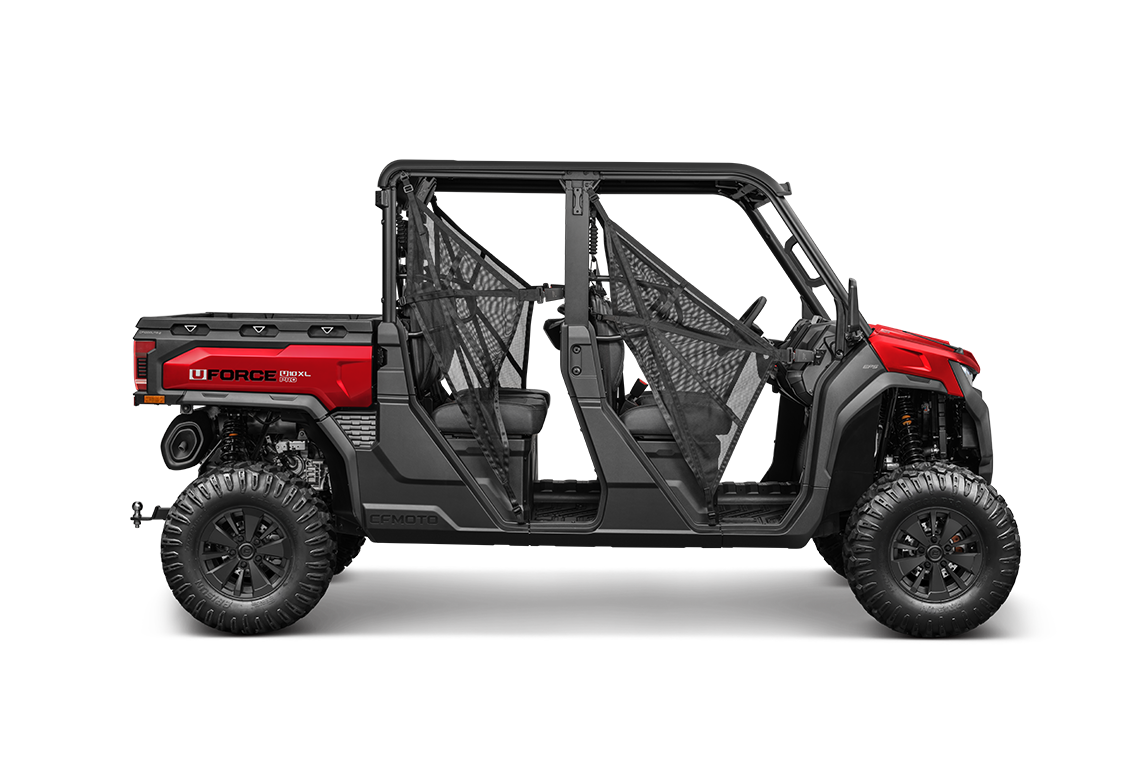

The UFORCE U10 XL PRO and U10 XL PRO HIGHLAND are CFMOTO’s flagship utility side-by-sides, combining a powerful 998cc inline triple-cylinder engine with premium six-passenger seating, advanced smart technology, and serious hauling capability. Designed for riders who demand the best in performance, refinement, and versatility, these models deliver an exceptional driving experience whether on the worksite or out on the trail. The HIGHLAND variant takes the platform further with elevated luxury and additional advanced features.

Engine:

998cc Triple-Cylinder

Maximum Power:

90 hp

Passengers Allowed:

6

Ground Clearance:

330 mm

Torque:

94.5N·m

DISCOVER

998CC TRIPLE-CYLINDER PERFORMANCE

The 998cc inline triple-cylinder engine delivers 90 hp and 94.5N·m of torque, providing smooth, strong performance across the full power band even when carrying a full load of six passengers.

ADVANCED SMART TECHNOLOGY

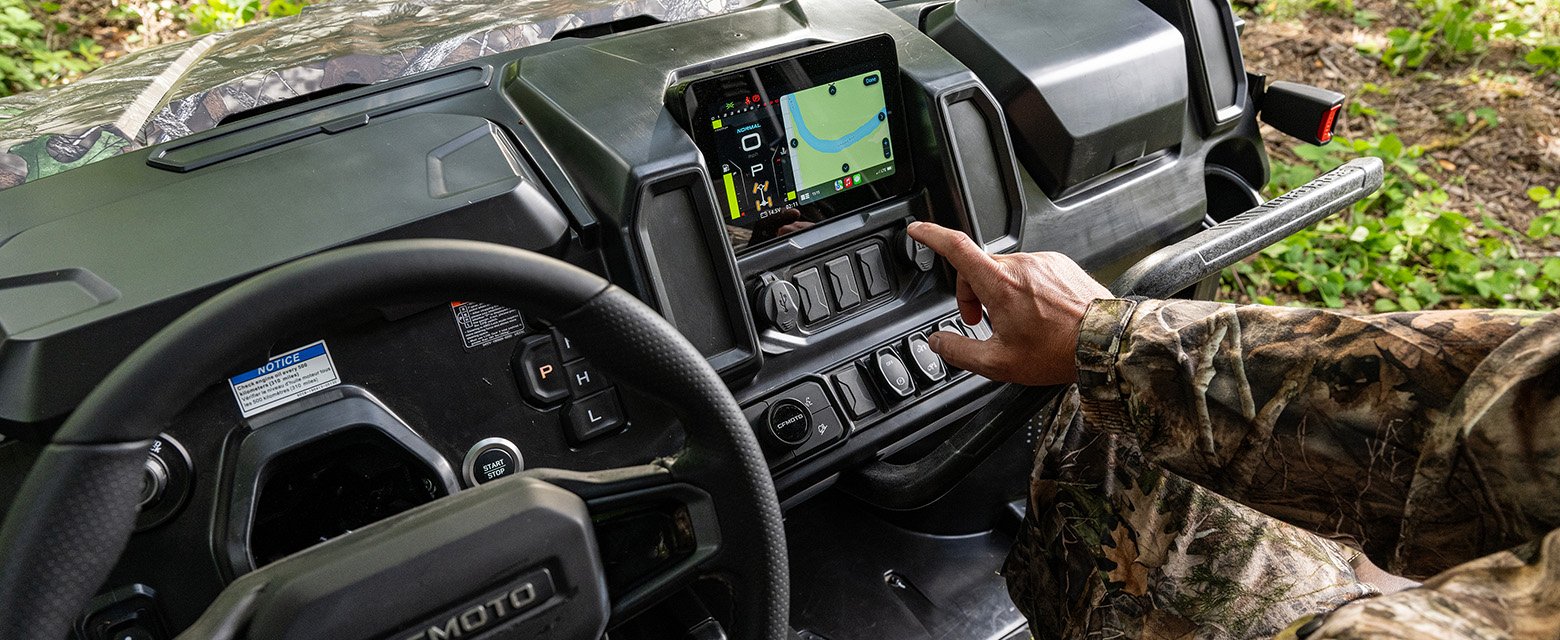

An 8-inch TFT display with integrated CarPlay, OTA upgrades, full-screen and split-screen modes, and E-SHIFT electronic gear transitions deliver a refined, connected, and intuitive driving experience.

SERIOUS HAULING AND SIX-PASSENGER COMFORT

A 454 kg electronic tilt cargo box, 1,134 kg towing capacity, ergonomic dual bench seating for six, and thoughtfully designed dashboard and under-seat storage combine utility and comfort in one premium package.

Equipment

Engine
Triple-cylinder, 4-stroke, liquid-cooled, DOHC, 998cc

Fuel system
Bosch EFI

Maximum power
90hp @ 7250rpm

Maximum torque
94.5N·m @ 6500rpm

Transmission
CVT, P-R-N-H-L

Drive system
2WD/4WD/4WD Lock

Shifting system
E-SHIFT electronic gear transitions

Passengers allowed
6

Towing capacity
1,134kg

Rear cargo capacity
454kg electronic tilt cargo box

Payload capacity
732kg

Fuel capacity
45L

Ground clearance
330mm

Display
8-inch TFT with integrated CarPlay and OTA upgrades

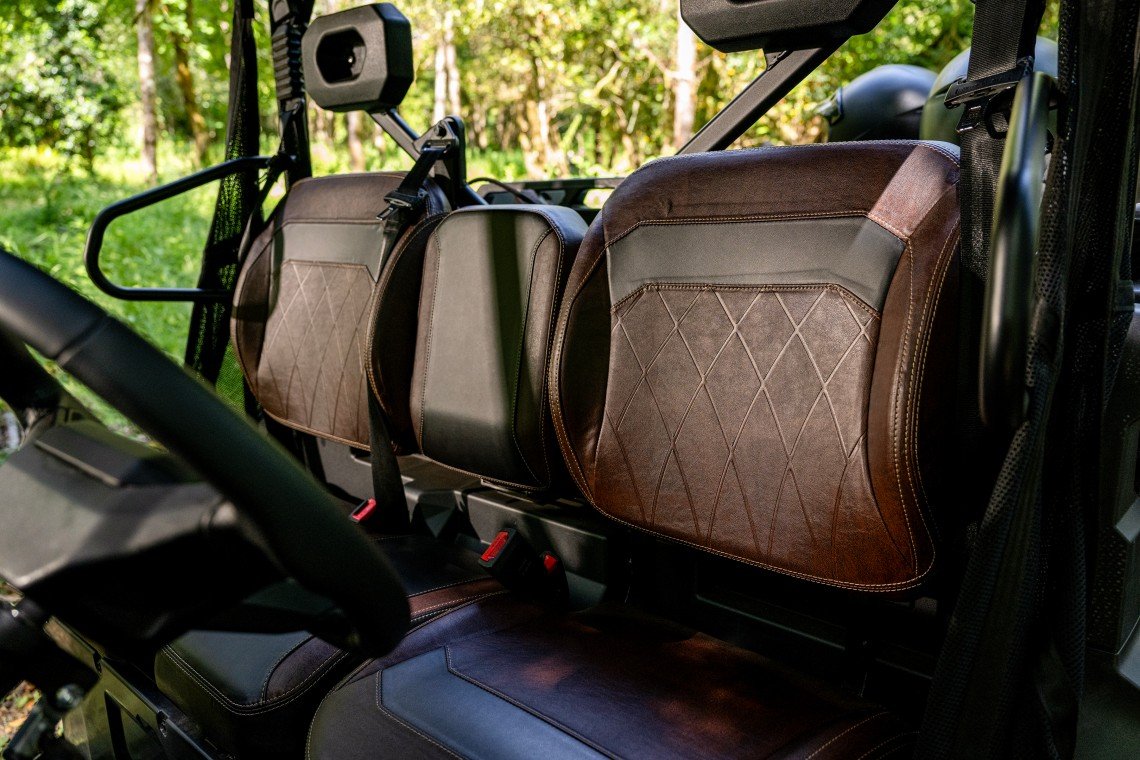

Seating
Two ergonomic bench seats with convertible front center console

Storage
Two enclosed dashboard boxes and extended under-seat storage

Brake system
Front dual disc / Rear single disc

Front suspension
High clearance double A-arm independent, 280mm travel

Rear suspension
Double A-arm independent, 260mm travel

Shock absorber
Front/Rear: Spring pre-load adjustable, oil damped

Rims
14-inch alloy

Front tire
29×9 R14

Rear tire
29×11 R14

Color
Bordeaux Red / TT Kanati / Forest Green

TECHNICAL SPECIFICATIONS

ENGINE

SpecificationDetails
Engine TypeTriple-cylinder, 4-stroke, liquid-cooled, DOHC
Displacement998cc
Maximum Power90hp @ 7250rpm
Maximum Torque94.5N·m @ 6500rpm
Fuel SupplyBosch EFI
TransmissionCVT, P-R-N-H-L



DIMENSIONS & WEIGHT

SpecificationDetails
Length x Width x Height (U10 XL PRO)3750 × 1625 × 1945mm
Length x Width x Height (U10 XL PRO HIGHLAND)3750 × 1645 × 1945mm
Wheelbase2860mm
Minimum Ground Clearance330mm
Curb Weight968kg
Payload Capacity732kg
Fuel Capacity45L
Towing Capacity1,134kg
Rear Cargo Capacity454kg



CHASSIS

SpecificationDetails
Drive2WD/4WD/4WD Lock
BrakeFront dual disc / Rear single disc
Front SuspensionHigh clearance double A-arm independent, 280mm travel
Rear SuspensionDouble A-arm independent, 260mm travel
Shock AbsorberFront/Rear: Spring pre-load adjustable, oil damped
Rim14-inch alloy
Front Tire29×9 R14
Rear Tire29×11 R14



COLORS

OptionDetails
Available ColorsBordeaux Red / TT Kanati / Forest Green
