Lightweight Carbon Road E-Bike Built for Distance

Engineered for road riders who demand more from every ride. The Defy Advanced E+ Elite AR combines a lightweight carbon frame, a seamlessly integrated battery, and the new SyncDrive Move Plus motor system to tackle steep inclines, sustain higher speeds, and extend your range. Refined, efficient, and intuitive — this is e-road cycling at its most capable.

Size Options:

S, M, ML, L

Frame:

Advanced-Grade Composite

Battery:

EnergyPak 400Wh

Motor Torque:

75Nm equivalent

DISCOVER

NATURAL RIDING FEELING

The 1.7kg SyncDrive Move Plus rear-hub motor delivers 30Nm (75Nm equivalent), tuned specifically for road performance. It provides seamless power at high cadence, effortless acceleration, and zero motor resistance when coasting — preserving the natural feel of every ride.

SYSTEM INTEGRATION

A 2.3kg downtube-integrated EnergyPak 400Wh battery pairs with the top-tube RideControl Go for instant assist mode control. Three-sensor Intelligent Assist technology measures pedal input in real time, ensuring smooth, precise power delivery alongside SRAM wireless shifting and integrated tail lighting.

TOP ROAD PERFORMANCE

An Advanced-grade carbon frame, D-Fuse composite seatpost, SLR 1 carbon wheels, and Schwalbe G-One Allround tubeless tires combine to deliver a composed, efficient ride across all road conditions — the hallmark of the Defy road lineage.

Equipment

Motor systemSyncDrive Move Plus Hub drive, 75Nm max
Control systemMode support switch from SRAM Blips
Display systemGiant RideControl GO, frame-integrated LED console, Optional wireless ANT+ display
Battery systemGiant EnergyPak 400Wh, Aluminium casing (EN50604), CO2 Neutral, EnergyPak Plus 200 range extender compatible
ChargerGiant EnergyPak smart charger 4A
ConnectivityGiant RideControl App enabled, ANT+ wireless display signal with e-bike profile
ColorMidnight Moon
SizeS, M, ML, L
FrameAdvanced-grade composite, 12×145 thru-axle
ForkAdvanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12×100mm thru-axle, Disc
HandlebarsGiant Contact SL D-Fuse 31.8 alloy
StemContact SL Aerolight 31.8 alloy
SeatpostGiant D-Fuse, Composite, 14mm offset
SaddleGiant Approach
Shift GripSRAM Rival AXS
Front transmissionN/A
Rear transmissionSRAM Rival XPLR AXS
Brake systemSRAM Rival AXS HRD, Paceline 160mm Center-Lock [F] / 6-Bolt [R]
Brake gripSRAM Rival AXS HRD
FlywheelSRAM XPLR XG-1251 10×44T 12-speed
ChainSRAM Rival 12-speed
Large chainringSRAM X-SYNC 46T BCD107, Praxis E Crank Alloy ISIS
Bottom BracketGiant E+ System BBSS
RimsGiant SLR 1 E+ 36 Carbon Disc Wheel System, Hookless, Tubeless Ready, 12mm thru-axle, w/ Sapim E-Light [R] / CX-Ray [F], e-bike optimized
TireSchwalbe G-One Allround Performance, RaceGuard, Brown sidewall, Tubeless, 700×35
OtherFender adapter
LightSeatpost clamp integrated tail light
WeightFor the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

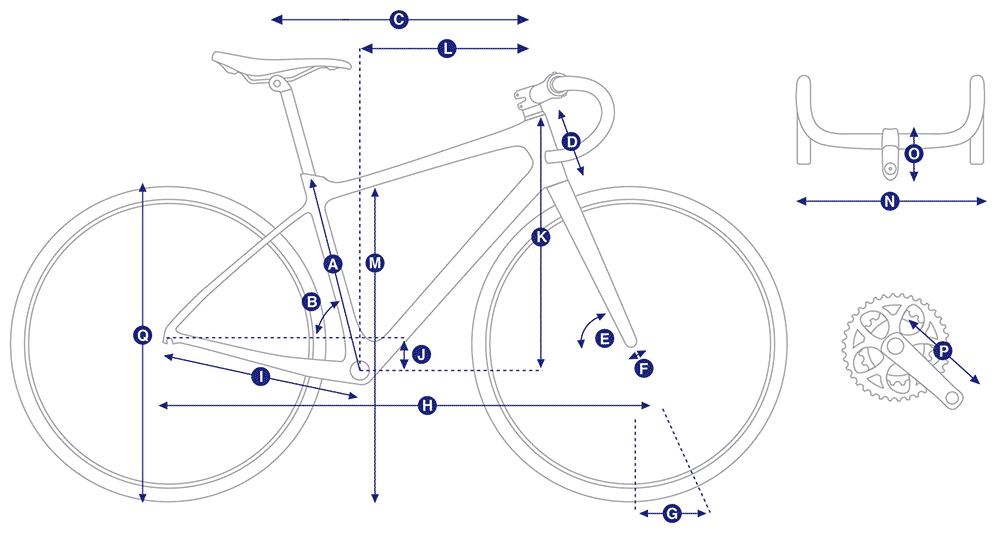

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement S M ML L
A Length of the seat (upright) tube (mm) 445480515535
B The angle of the seat (riser) 74.0°73.5°73.0°73.0°
C Top tube length (mm) 530545560575
D Head tube length (mm) 130145167187
E Head tube angle 71.5°72.5°72.5°72.5°
F Fork (mm) 50505050
G Trail (mm) 56.158.658.658.6
H Front and rear track (mm) 99499510081023
I Rear fork length (mm) 420420420420
J Bottom drop height (mm) 80807575
K Head bowl to bracket height (mm) 542560576595
L Head bowl to bracket length (mm) 374379384393
M Upper tube to ground height (mm) 716746779799
N Handle width (mm) 400420420440
O Tap length (mm) 90100110110
Q Wheelset size 700C700C700C700C
