Lightweight All-Road Fitness Bike for Speed and Fun

FastRoad AR Advanced 1-Asia turns everyday riding into a fast, fun workout. A lightweight Advanced-grade composite frameset, flat-bar positioning, and all-road clearance combine to deliver confident handling on city streets, bike paths, and rougher backroads. Efficient, smooth, and versatile, it’s built to go wherever your fitness goals take you.

Size Options:

XS, S, M, M/L

Frame:

Advanced-Grade Composite

Groupset:

Shimano 105 2×11

Wheels:

Giant P-R2 Disc, 700C

DISCOVER

LIGHTWEIGHT EFFICIENCY

An Advanced Composite frameset with refined tube shaping makes this model around 350g lighter than the aluminum version. A stiffer bottom bracket area improves power transfer, helping you accelerate more quickly and climb more efficiently with less effort.

SMOOTH, STABLE RIDE QUALITY

Flat-bar geometry creates a more upright, confident riding position for better visibility and control. Powerful disc brakes add consistent stopping power in all weather, while the D-Fuse composite seatpost and ErgoContact saddle help absorb vibration and smooth out rough or broken road surfaces.

ALL-ROAD CAPABILITY

High-volume tubeless-ready tires (with clearance up to 42mm) allow you to ride everything from smooth tarmac to bumpy paths and light gravel. The Shimano 105 double chainring drivetrain offers a wide range of gearing, making it easy to spin comfortably whether you’re cruising, climbing, or pushing the pace.

Equipment

SizeXS, S, M, M/L
ColorIcicle White
FrameAdvanced-grade composite, 12×142mm thru-axle, disc
ForkAdvanced-grade composite, OverDrive composite steerer, 12×100mm thru-axle, disc
HandlebarsGiant Sport Flat, 31.8
StemGiant Contact, alloy
SeatpostGiant D-Fuse, composite
SaddleGiant ErgoContact
Shift GripShimano 105 SL-RS700, 2×11-speed
Front transmissionShimano 105
Rear transmissionShimano 105 2×11S
Brake systemTektro HD-R280 hydraulic disc
Brake gripTektro HD-R280
FlywheelShimano 105 CS-HG700, 11–34T
ChainKMC X11
Large chainringFSA Omega, 32/48
Bottom BracketShimano, Press Fit
RimsGiant P-R2 Disc
TireGiant Gavia Fondo 2, 60 tpi, 700×32C, wire bead, tubeless
Max tire clearance42mm
WeightFor the most accurate weight, please consult your authorized Giant store. Actual weight varies by frame size and components.

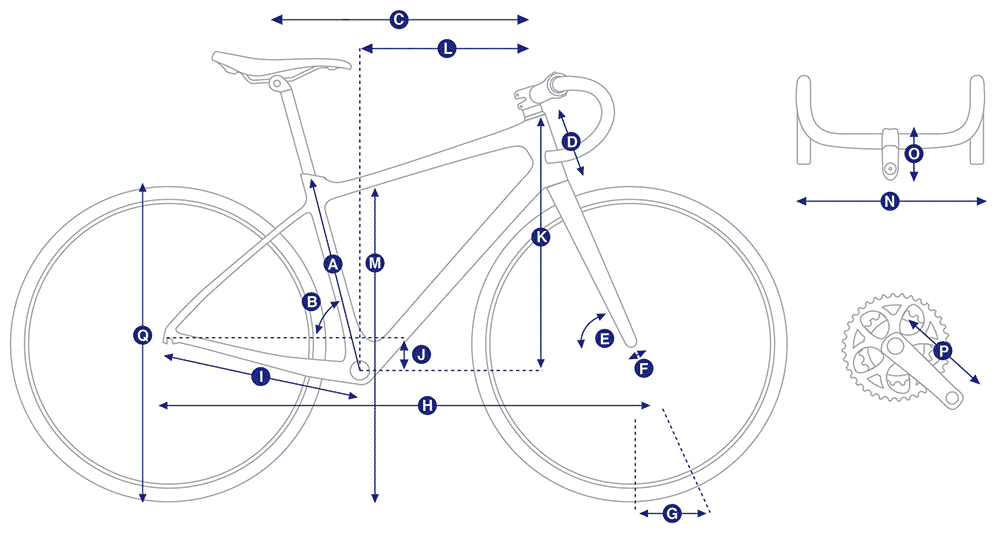

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement XS S M ML L
A Seat tube length (mm) 435455475495525
B Seat tube angle 73.5°73.5°73.5°73.0°73.0°
C Top tube length (mm) 545560575590610
D Head tube length (mm) 110130155175200
E Head tube angle 70.5°70.5°71.0°71.0°71.5°
F Fork (mm) 5050505050
G Trail (mm) 73.773.770.470.467.1
H Wheelbase (mm) 10311047105810691084
I Chain stay length (mm) 435435435435435
J Bottom bracket drop (mm) 7575757575
K Stack (mm) 533552578597623
L Reach (mm) 387396404407419
M Stand over height (mm) 718736756773800
N Handlebar width (mm) 640640680680680
O Stem length (mm) 70809090100
P Crank length (mm) 170170170172.5172.5
Q Wheelset size 700C700C700C700C700C
