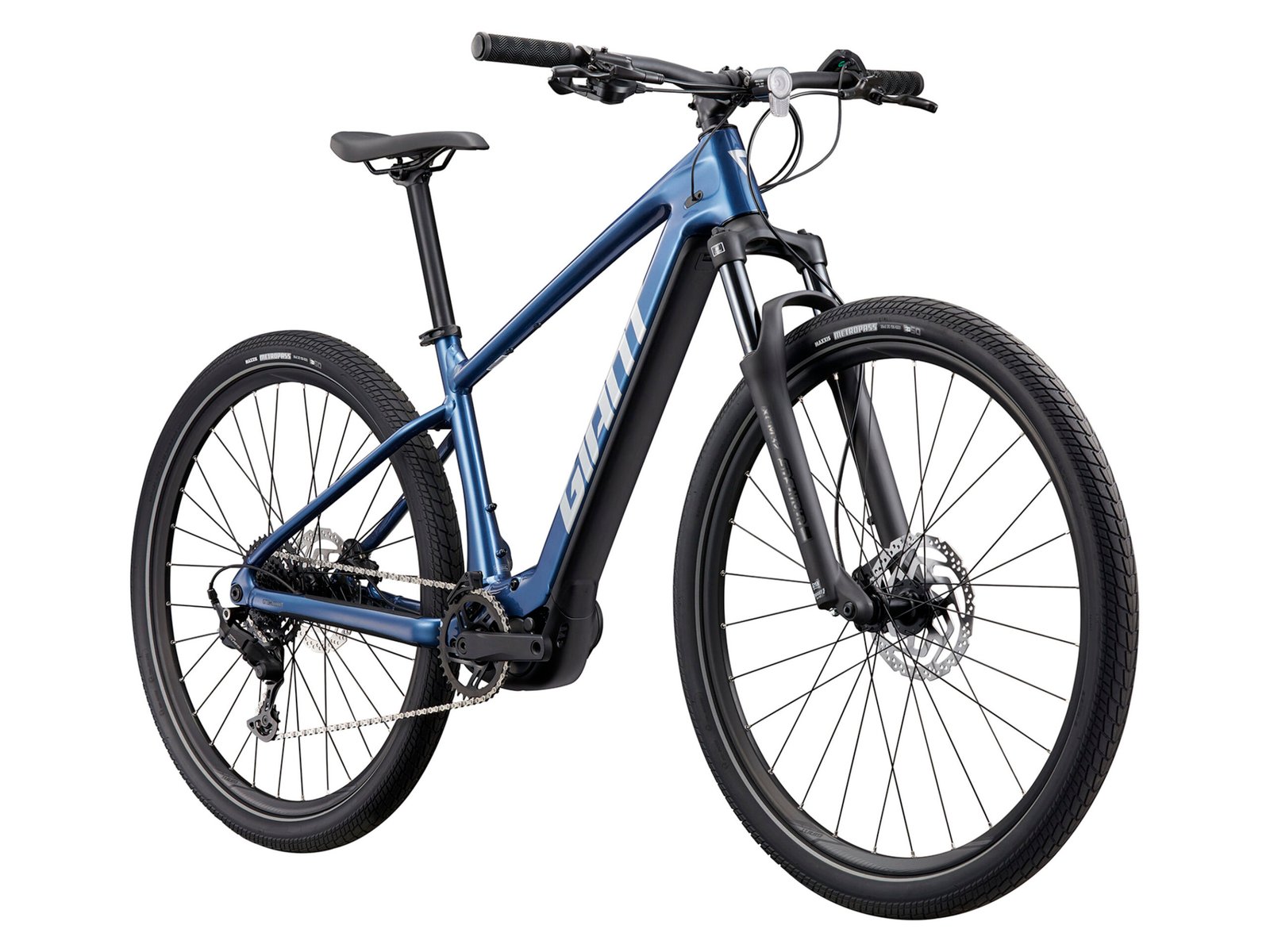

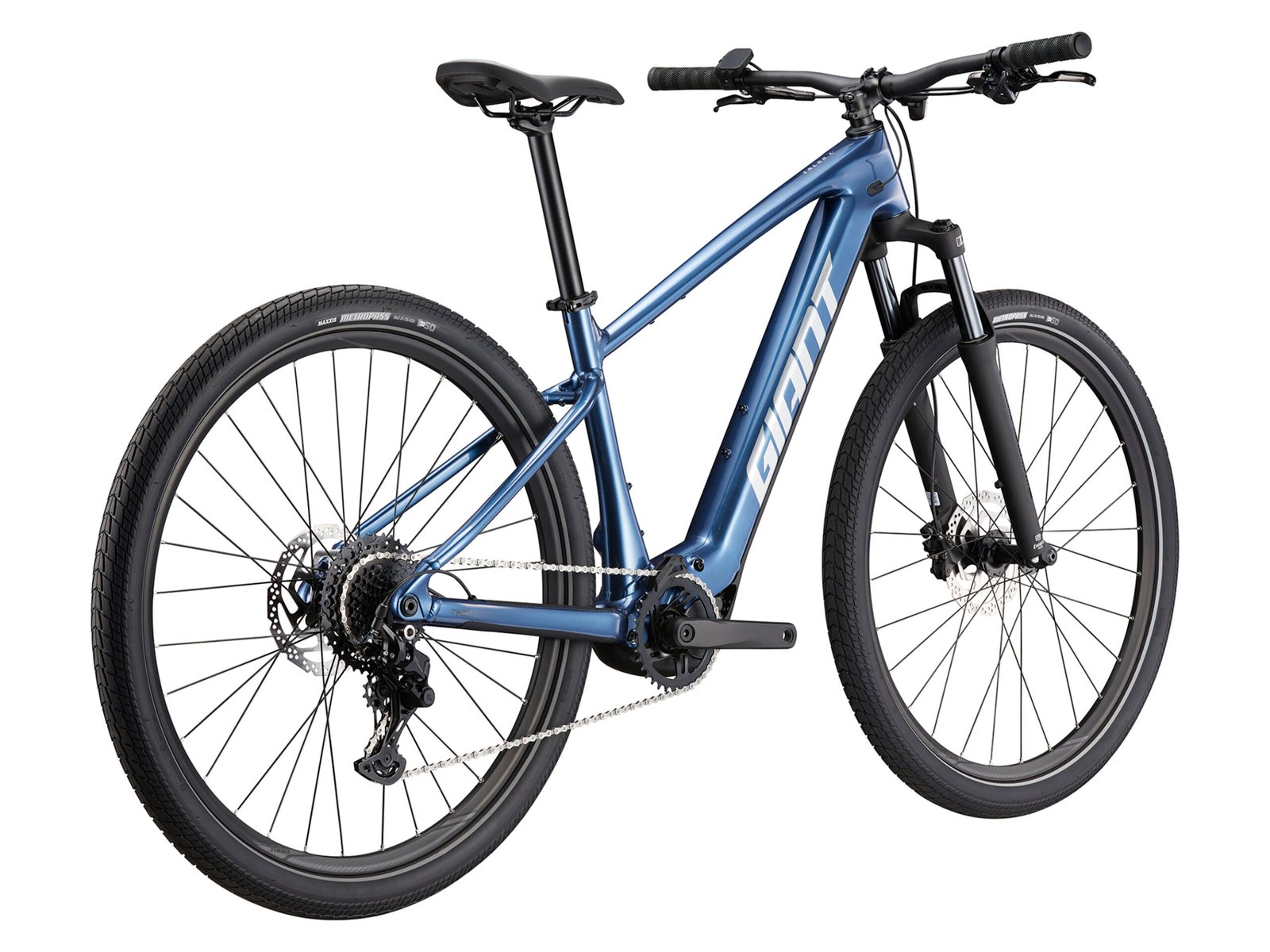

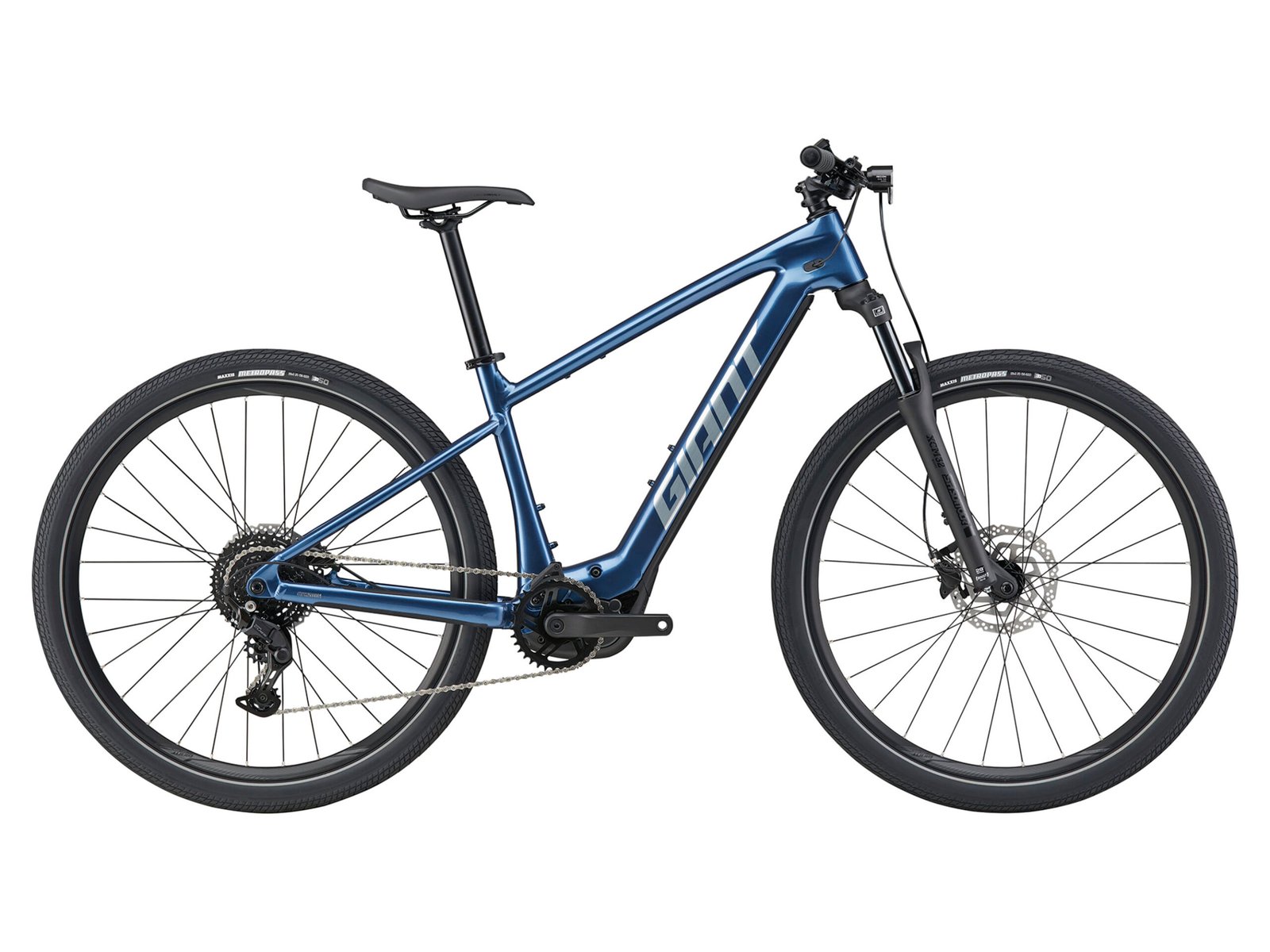

All-Terrain E-Bike — Smarter, Bolder, and More Versatile

Whether you’re tackling mountain trails, rolling across gravel paths, or energizing your daily commute, the Talon E+ makes every ride effortless and exciting. Combining powerful electric assistance with a lightweight, agile aluminum frame and a deeply integrated smart system, it strips away complexity so you can focus on what matters most — the pure joy of riding.

Size Options:

S, M, L

Frame:

ALUXX Aluminum

Battery:

EnergyPak Smart 430Wh

Motor Torque:

75Nm equivalent

DISCOVER

LIGHT AND AGILE BY DESIGN

Built around a lightweight ALUXX aluminum frame, the Talon E+ delivers a nimble, responsive ride on any terrain. An advanced integrated head tube design — crafted through precision hydroforming and gravity casting — minimizes weld marks, reduces overall weight, and achieves a clean, modern aesthetic rivaling carbon fiber models.

SMOOTH AND CONFIDENT POWER

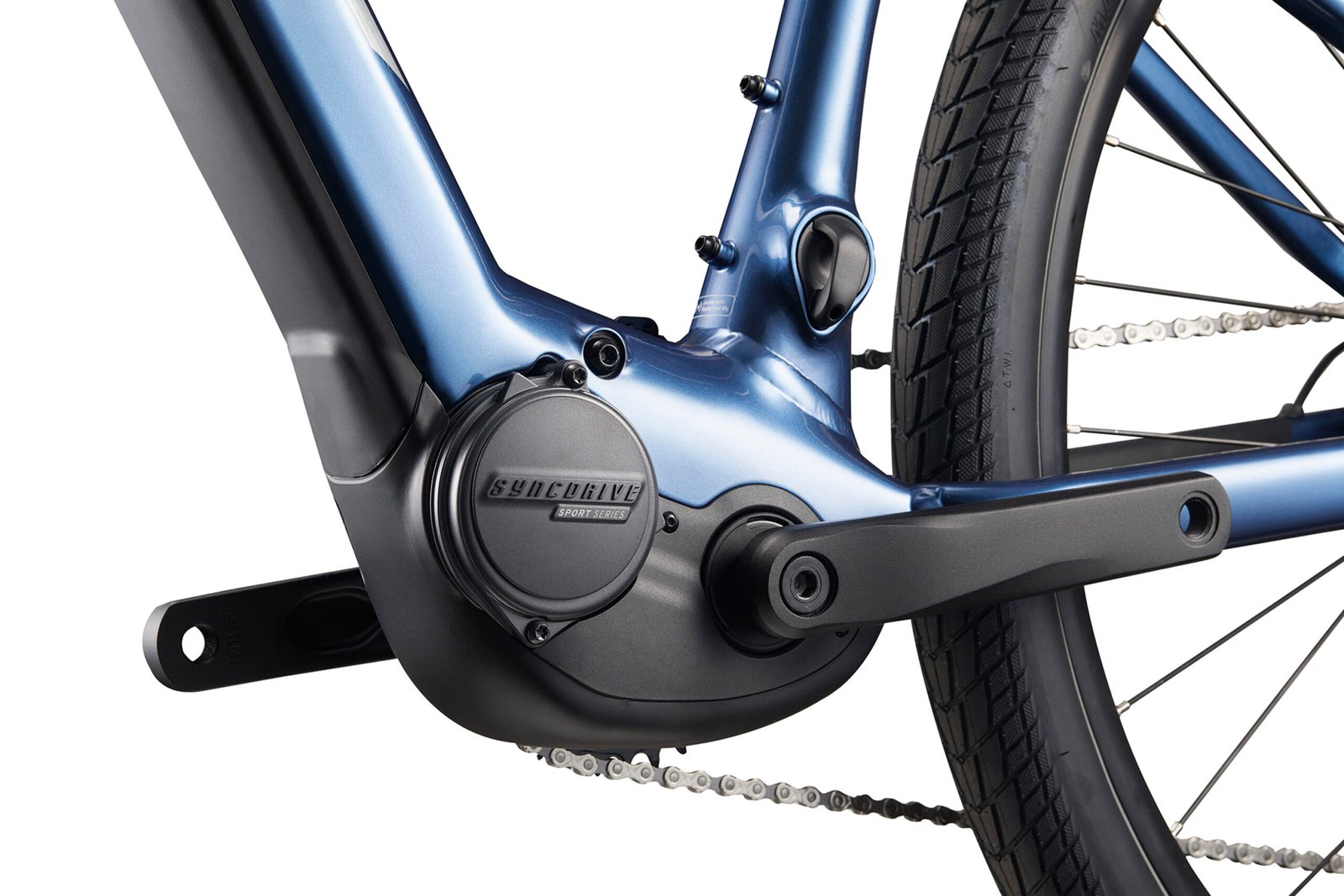

The high-performance SyncDrive Sport 2 mid-mount motor delivers 75Nm of torque and up to 400% pedal assist, while the seamlessly integrated 430Wh removable EnergyPak Smart battery provides long-range capability. Need to go further? An optional 200Wh EnergyPak Plus range extender adds even more distance without compromising the bike's clean lines.

SMART SECURITY, TOTAL PEACE OF MIND

The Talon E+ features the Giant E-Lock electronic locking system, operable directly from the app or handlebar controller. Full Apple Find My integration enables real-time location tracking and separation alerts from your iPhone — and an automatic anti-theft alarm triggers immediately if the bike is moved without authorization.

Equipment

Motor systemGiant SyncDrive Sport 2, 75Nm, PedalPlus 6-sensor technology
Control systemGiant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
Display systemGiant RideControl Dash 2, high-angle visibility, full-color LCD display
Battery systemGiant EnergyPak Smart 430Wh, Aluminium casing (EN50604), CO2 Neutral production, EnergyPak Plus 200 range extender compatible
ChargerGiant EnergyPak smart charger 4A
ConnectivityGiant RideControl App enabled, ANT+ wireless display signal with e-bike profile
SizeS, M, L
ColorBlue
FrameALUXX Aluminum, OverDrive 1½–1⅛” head tube, integrated KSA40 kickstand mount
ForkSR Suntour XCM ATB DS Coil, 29″, 100mm travel, 15×110 AH axle
Shock absorbersN/A
HandlebarsGiant Connect TR Riser 31.8 × 690–750mm
Handle gripGiant Sole-O Grip
StemGiant Contact
SeatpostGiant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
SaddleGiant Ergo Trail ESG
PedalsAnti-slip Platform
Shift GripShimano Cues
Front transmissionN/A
Rear transmissionShimano Cues 9-speed
Brake systemShimano MT200 Hydraulic Disc, 180mm [F/R]
Brake gripShimano MT-200
FlywheelShimano Cues, 11–41T, 9-speed
ChainKMC eGlide NP/BK, e-bike optimized
Large chainringForged Aluminum Direct-Mount Steel 36T, Forged Aluminum Crank Arms
Bottom BracketN/A
RimsGiant GX03V Aluminum
HubTracker Boost Alloy 6-bolt Disc, 15×110mm [F] / 12×148mm [R]
SpokesStainless Steel
TireMaxxis Metropass 28×2.2 (29″)
LightIntegrated headlight
CarrierN/A
WeightApprox. 22kg. For the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement S M L
A Length of the seat (upright) tube (mm) 385435485
A1 Seat post insertion depth (mm) 200240260
B The angle of the seat (riser) 78.0°74.0°74.0°
C Top tube length (mm) 580600620
D Head tube length (mm) 100115130
E Head tube angle 68.0°68.0°68.0°
F Fork (mm) 464646
H Front and rear track (mm) 114411651187
I Rear fork length (mm) 470470470
J Bottom drop height (mm) 606060
K Head bowl to bracket height (mm) 613627641
L Head bowl to bracket length (mm) 404420436
M Upper tube to ground height (mm) 723753788
N Handle width (mm) 750750780
O Tap length (mm) 505050
Q Wheelset size 29″29″29″
