Full-Power Trail E-Bike Built to Dominate Every Terrain

The new Stance E+ 1 is engineered for riders who demand more from every trail. An optimized suspension system, evolved frame geometry, and groundbreaking motor output combine to deliver unmatched climbing power and confident descending control. Whatever terrain you face, the Stance E+ 1 gives you the performance and precision to own it.

Size Options:

S, M, L

Frame:

ALUXX SL Aluminum

Battery:

EnergyPak Smart 800Wh

Motor Torque:

100Nm

DISCOVER

GROUNDBREAKING KINETIC ENERGY

The new SyncDrive Pro 3X motor delivers a peak output of 800W and 100Nm of torque — an 11% improvement in torque-to-weight ratio over its predecessor — while maintaining a lightweight 2.6kg. Tuned to sustain strong assist across all cadences and reinforced with an Anti-Squat rear shock design, it converts every pedal stroke into direct, efficient forward momentum.

FEARLESS TRAIL CAPABILITY

The redesigned FlexPoint suspension system provides 140mm of rear travel paired with a 150mm front fork, pushing off-road performance well beyond the previous generation. A 76.5° seat angle maximizes climbing efficiency, while the 64.5° head tube angle and lowered bottom bracket center of gravity deliver the stability and control needed for high-speed descents and technical sections alike.

SMART CUSTOMIZATION & RANGE

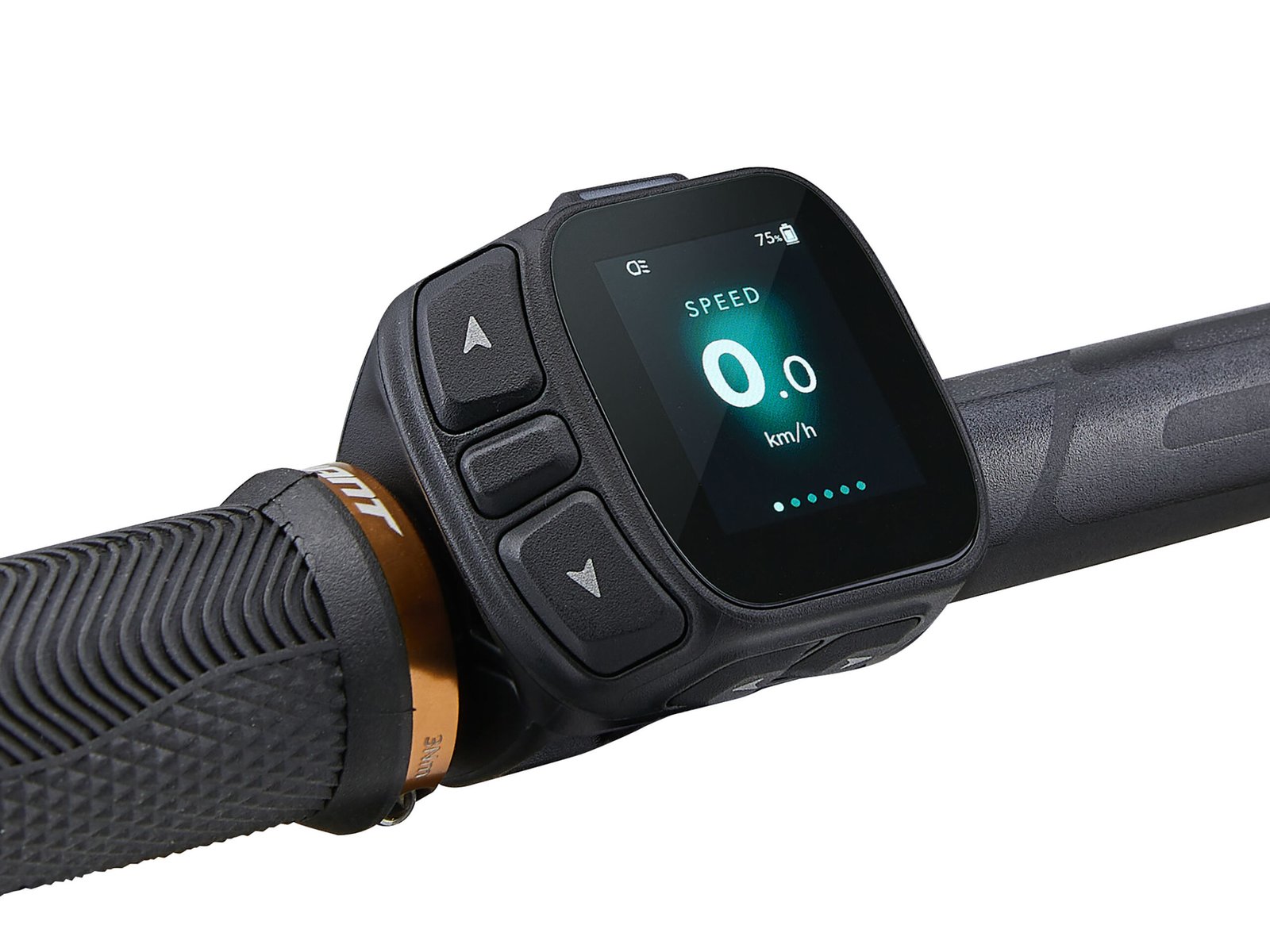

The RideControl Dash 2 full-color display lets you personalize ride data and switch assist modes intuitively by color. The high-capacity 800Wh EnergyPak Smart battery supports optional 200Wh or 250Wh EnergyPak Plus range extenders, while the RideControl app enables precise motor tuning — from efficient Eco mode to maximum Power mode — for any trail, any distance.

Equipment

Motor systemGiant SyncDrive Pro 3X, 100Nm, PedalPlus 6-sensor technology
Control systemGiant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
Display systemGiant RideControl Dash 2, full-color LCD display
Battery systemGiant EnergyPak Smart 800Wh
ChargerGiant EnergyPak smart charger 4A
SizeS, M, L
ColorAlmond Yellow
FrameALUXX SL-grade aluminum, 140mm travel FlexPoint linkage suspension, 148×12 Boost rear axle, UDH Universal Derailleur Hanger, KSA40 compatible, 185×52.5mm shock, 1.5–1.8″ headset (ZS62/ZS72)

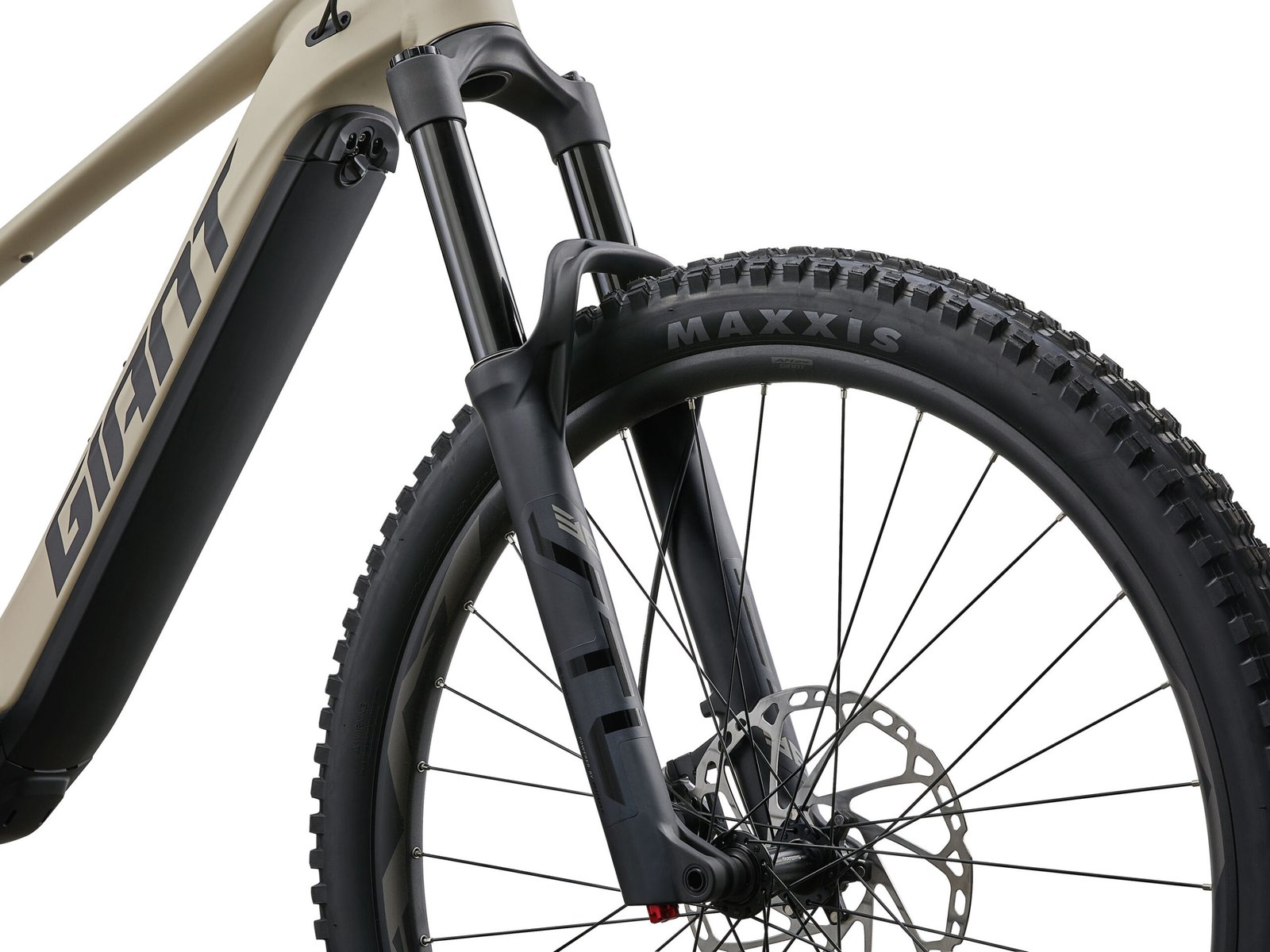

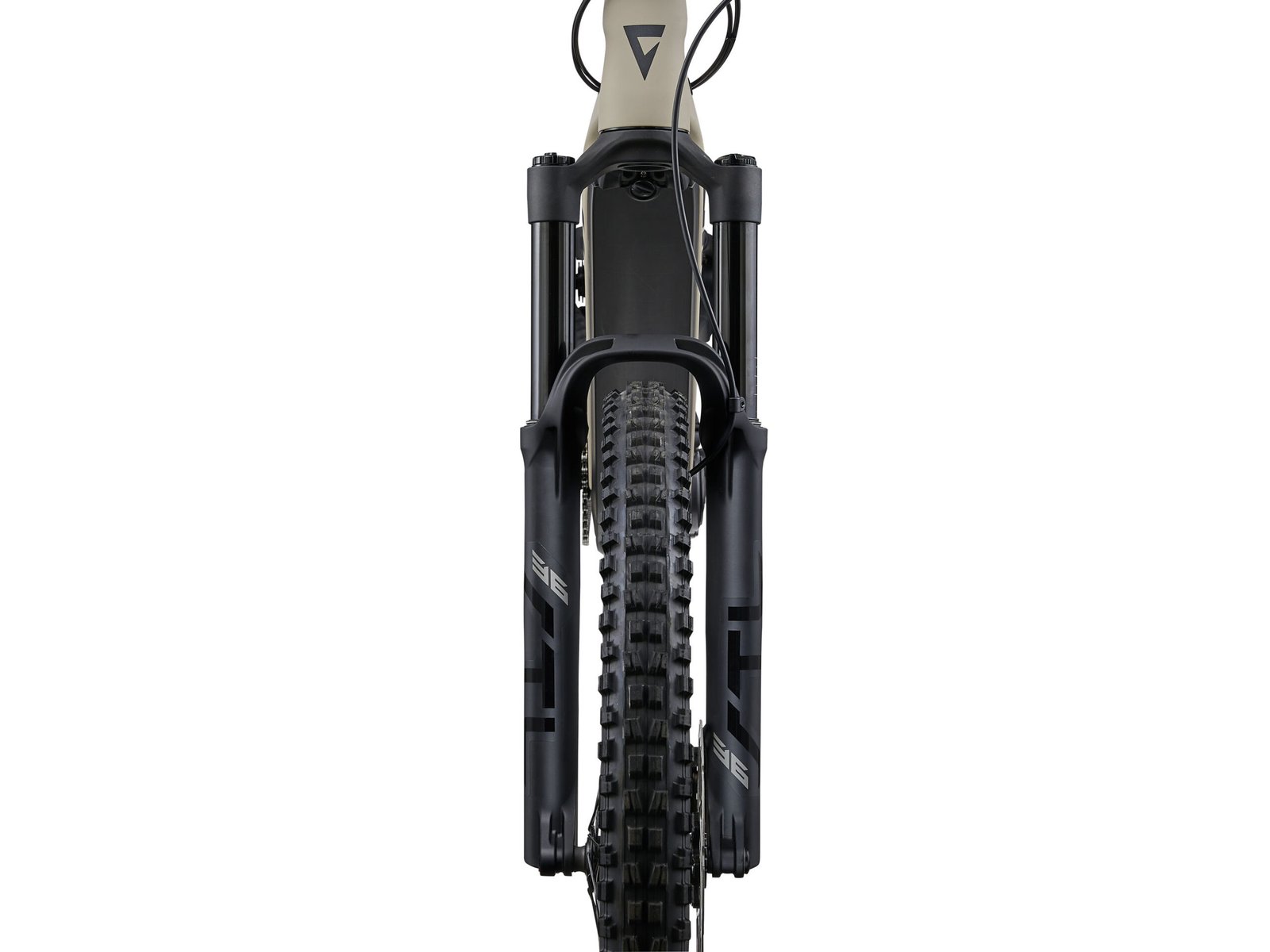

ForkGiant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110×15mm Boost axle, full fender compatible
Shock absorberGiant Crest FloTrac, 3-position lever, e-bike optimized, 185×52.5mm — Sag recommendation: 30% (15.75mm)
HandlebarsGiant Connect TR35, 20mm Rise — 35×760mm [S] / 35×780mm [M–XL]
Handle gripGiant Tactal Pro single lock-on
StemGiant Contact SL 35
SeatpostGiant Contact Switch AT Dropper — S: 110–140mm / M: 140–170mm / L–XL: 170–200mm
SaddleGiant Contact Ergo Trail
PedalsLarge platform pedal, 28-pin PP cage, steel axle
Shift GripShimano Cues LinkGlide
Front transmissionN/A
Rear transmissionShimano Cues LinkGlide, 10-speed, Shadow+
Brake systemShimano Deore BR-M420, Hydraulic Disc, 4-piston — 220mm [F] / 203mm [R]
Brake gripShimano Deore BL-M401
FlywheelShimano Cues LinkGlide, 10-speed, 11–48T
ChainShimano LinkGlide
Large chainringDirect-mount steel 36T (max. 38T), forged aluminum crank arms
Bottom BracketN/A
RimsGiant AM30, Tubeless Ready, 30mm inner width
HubShimano TC500 Boost, Center-Lock — 15×110mm [F] / 12×148mm [R]
SpokesStainless Steel
TireMaxxis Minion DHF 29×2.50″ WT Foldable TLR EXO [F] / Maxxis Dissector 29×2.40″ WT Foldable TLR EXO [R]
Chain guideMRP 1x HD guide, CS e-Mount, 32–38T adjustable
LockTorx 25 battery lock with built-in torque limiter
WeightApprox. 26kg (including pedals, battery, and reflectors). For the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

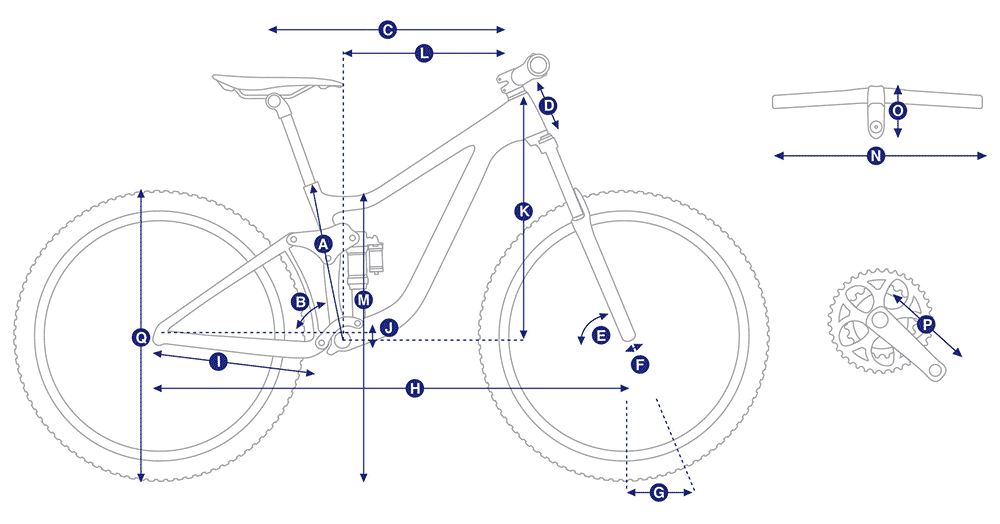

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement S M L
A Length of the seat (upright) tube (mm) 400425450
A1 Seat post insertion depth (mm) 235260285
B The angle of the seat (riser) 76.5°76.5°76.5°
C Top tube length (mm) 579606635
D Head tube length (mm) 100115130
E Head tube angle 64.5°64.5°64.5°
F Fork (mm) 444444
G Trail (mm) 132132132
H Front and rear track (mm) 122912591291
I Rear fork length (mm) 468468468
J Bottom drop height (mm) 262626
K Head bowl to bracket height (mm) 614628641
L Head bowl to bracket length (mm) 431455480
M Upper tube to ground height (mm) 746744756
N Handle width (mm) 780780780
O Tap length (mm) 404050
P Crank length (mm) 165165165
Q Wheelset size 29″29″29″
