Carbon Gravel Race Bike — Fast, Smooth, and Ultra-Adaptive

Revolt Advanced Pro 1 is built to crush modern gravel—from fast race courses to long, rough backroads. A lightweight Advanced-grade composite frame, Advanced SL fork, flip chip rear dropout, and integrated storage combine to deliver race-winning efficiency, tuned compliance, and smart versatility. Lighter, smoother, and more adaptable, it keeps you in control when conditions change.

Size Options:

XS, S, M, ML

Frame:

Advanced-Grade Composite

Groupset:

SRAM Rival AXS E1 2×12

Wheels:

Giant CXR 2 WheelSystem, 35mm

DISCOVER

FAST AND VERSATILE

A lightweight Advanced-grade composite frame paired with an Advanced SL composite fork delivers race-level efficiency and confident control. The two-position flip chip at the rear dropout lets you choose a shorter wheelbase for quicker handling, or a longer setting for extra tire clearance (up to 53mm) and added stability. You can run the included D-Fuse seatpost for maximum flex, or swap to a 30.9mm round post or dropper.

TUNED COMPLIANCE

Dropped seatstays with slim tubing help absorb shocks and vibrations across rough gravel and broken surfaces. The Contact SLR XR D-Fuse carbon handlebar and D-Fuse SLR seatpost work together to further smooth out impacts, improving control and reducing fatigue on long rides and demanding events.

SMART INTEGRATION

Internal cable routing creates a clean, aero-friendly cockpit. A top-tube storage compartment gives easy access to tools, food, and essentials, while additional mounts on the top tube, fork, and rear dropout make it simple to add bags or fenders. Molded chainstay and down tube protectors guard the frame from debris and chain slap while keeping noise to a minimum.

Equipment

SizeXS, S, M, ML
ColorOcean Twilight / Chrome
FrameAdvanced-grade composite, 12×142mm thru-axle, disc, flip chip dropout, down tube storage
ForkAdvanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
HandlebarsGiant Contact SLR XR D-Fuse, 31.8mm — XS: 42cm, S: 42cm, M: 44cm, M/L: 44cm, L: 46cm, XL: 46cm
Handle tapeStratus Lite 3.0
StemGiant Contact AeroLight, -10° — XS: 50mm, S: 60mm, M: 70mm, M/L: 80mm, L: 80mm, XL: 90mm
SeatpostGiant D-Fuse SLR, composite, -5/+15mm offset
SaddleGiant Grit SL
Shift GripSRAM Rival AXS E1, 2×12
Front transmissionSRAM Rival AXS D1
Rear transmissionSRAM Rival AXS E1
Brake systemSRAM Rival AXS E1 hydraulic, SRAM PaceLine rotors — 160mm [F] / 160mm [R]
Brake gripSRAM Rival AXS E1 hydraulic
FlywheelSRAM Rival D1, 12-speed, 10–36T
ChainSRAM Rival E1
Large chainringSRAM Rival D1 DUB, 30/43 — XS: 170mm, S: 170mm, M: 172.5mm, M/L: 172.5mm, L: 175mm, XL: 175mm
Bottom BracketSRAM DUB, Press Fit
RimsGiant CXR 2 WheelSystem — 35mm [F] / 35mm [R]
Hub[F] Giant AR alloy, CenterLock, 12mm thru-axle / [R] Giant AR alloy, DT350 36T ratchet driver, CenterLock, 12mm thru-axle
SpokesSapim CX-Ray
TireCADEX GX, 700×40c, tubeless
OtherTubeless prepared, in-frame storage bag, 53mm max tire size (long flip chip), 45mm max tire size (short flip chip)
Max tire clearance53mm (flip chip in long position)
WeightFor the most accurate weight, please consult your authorized Giant store. Actual weight varies by frame size and components.

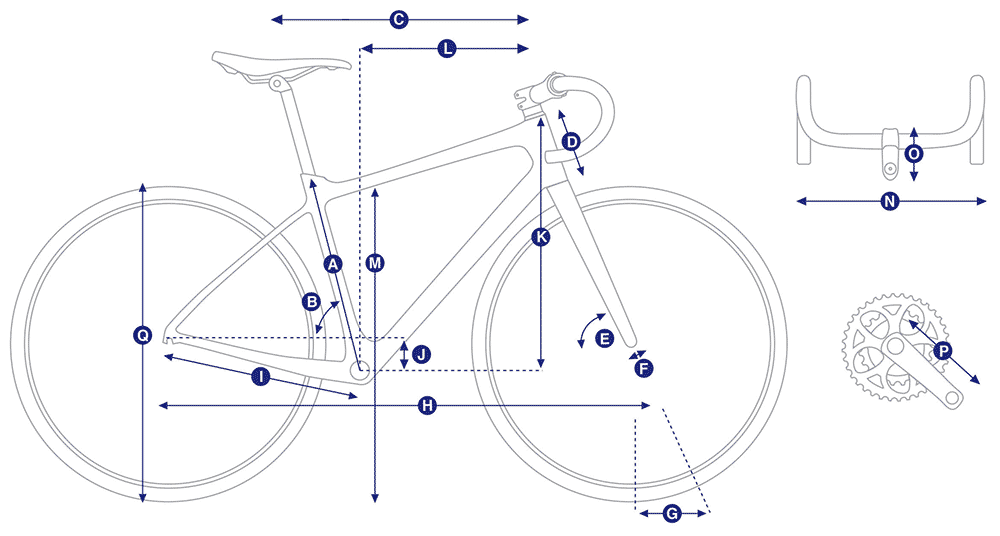

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement XS S M ML
A Seat tube length (mm) 430450470490
B Seat tube angle 74.0°73.5°73.5°73.0°
C Top tube length (mm) 540550560575
D Head tube length (mm) 125135150165
E Head tube angle 70.0°71.0°71.5°72.0°
F Fork (mm) 50505050
G Trail (mm) 78 / 82 72 / 75 68 / 72 65 / 68
H Wheelbase (mm) 1024 / 1034 1020 / 1030 1026 / 1036 1031 / 1041
I Chain stay length (mm) 425 / 435 425 / 435 425 / 435 425 / 435
J Bottom bracket drop (mm) 80 / 81 80 / 81 80 / 81 80 / 81
K Stack (mm) 556570586602
L Reach (mm) 381381387391
M Stand over height (mm) 724 / 731 740 / 747 757 / 764 774 / 780
N Handlebar width (mm) 420420440440
O Stem length (mm) 50607080
P Crank length (mm) 170170172.5172.5
