Compact Luxury Performance Road E-Bike

True lightweight performance meets electrical integration. Our most advanced e-road model, designed to feel just like a traditional high-performance bike. Light, nimble, and refined, it provides the extra power you need to conquer steep inclines and extend your range without compromising the pure joy of road cycling.

Size Options:

S, M, ML, L

Frame:

Advanced-Grade Composite

Battery:

EnergyPak 400Wh

Motor Torque:

75Nm equivalent

DISCOVER

NATURAL RIDING FEELING

The 1.7kg rear-hub SyncDrive Move Plus motor delivers 30Nm (75Nm equivalent). Expertly tuned for road performance, it ensures seamless acceleration and zero resistance when coasting.

SYSTEM INTEGRATION

A compact 2.3kg integrated EnergyPak 400Wh battery paired with top-tube RideControl Go. Intelligent three-sensor technology optimizes output for a smooth, intuitive ride.



ELITE PERFORMANCE

Engineered with an advanced carbon frame, D-Fuse damping, and wireless SRAM shifting. SLR 1 carbon wheels and tubeless tires deliver a refined, efficient road experience.

Equipment

Motor systemSyncDriveMove Plus Hub drive 75Nm max
Control systemMode support switch from SRAM bonus button
Display systemGiant RideControl GO, frame-integrated LED console, Optional wireless ANT+ display
Battery systemGiant EnergyPak 400Wh, Aluminium casing (EN50604), CO2 Neutral, Range extender compatible
ChargerGiant EnergyPak smart charger 4A
ConnectivityGiant RideControl App enabled, ANT+ wireless display signal
SizeS, M, L
ColorMeteor Stor
FrameAdvanced-grade composite, 12×145 thru-axle
ForkAdvanced SL-Grade Composite, OverDrive Aero Steerer, 12x100mm thru-axle
HandlebarsGiant Contact SLR D-Fuse 31.8 carbon
StemContact SLR Aerolight 31.8 carbon
SeatpostGiant D-Fuse SL, Composite, 16mm offset
SaddleGiant Fleet SL
Shift GripSram Force AXS
Front transmissionSram Force AXS
Rear transmissionSram Force AXS
Brake systemSram Force AXS HRD, 160mm Center-lock [F] / 6-bolt [R]
Brake gripSram Force AXS HRD
FlywheelSRAM Force XG-1270 10x33T 12-speed
ChainSram Force 12-speed
Large chainringSram Force X-SYNC 33/46T Praxis E Crank Carbon
Bottom BracketGiant E+ System BBSS
RimsGiant SLR 1 E+ 36 Carbon, Hookless, Tubeless Ready
TireCadex Classic, tubeless, 700×32, folding
OtherFender adapter
LightSeatpost clamp integrated tail light
WeightProfessional measurement recommended at authorized Giant channels.

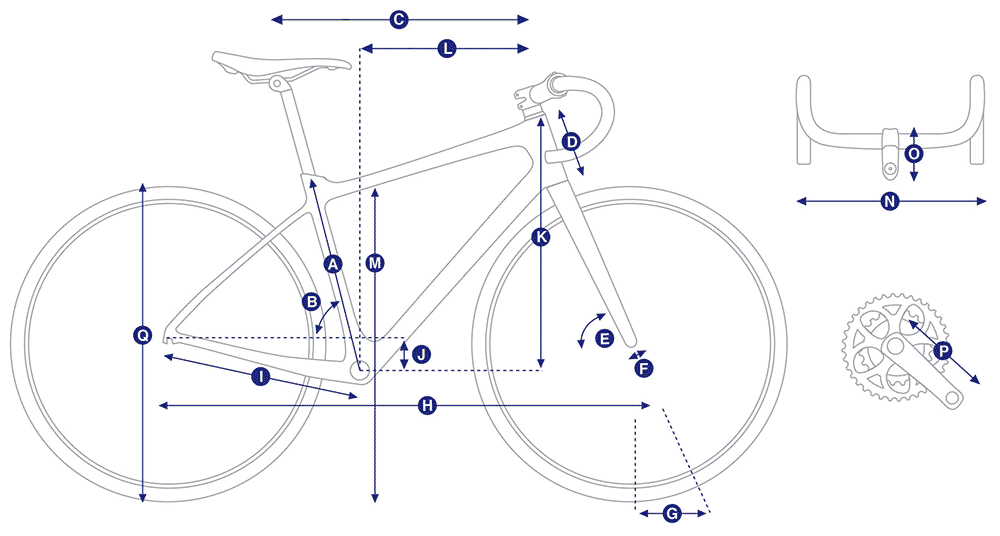

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement S M ML L
A Length of the seat (upright) tube (mm)445480515535
B The angle of the seat (riser)74.0°73.5°73.0°73.0°
C Top tube length (mm)530545560575
D Head tube length (mm)130145167187
E Head tube angle71.5°72.5°72.5°72.5°
F Fork (mm)50505050
G Trail (mm)56.158.658.658.6
H Front and rear track (mm)99499510081023
I Rear fork length (mm)420420420420
J Bottom drop height (mm)80807575
K Head bowl to bracket height (mm)542560576595
L Head bowl to bracket length (mm)374379384393
M Upper tube to ground height (mm)716746779799
N Handle width (mm)400420420440
O Tap length (mm)90100110110
Q Wheelset size700C700C700C700C
