Elite Triathlon & Time Trial Speed — Every Second Counts

The new Trinity Advanced SL 1 is engineered for athletes who refuse to lose time anywhere on the course. From flat-out aero sections to climbs, corners, and descents, it delivers a lighter, more aerodynamic, and more stable platform than its predecessor. With an ultra-wide cockpit adjustment range, an integrated supply and hydration system, and disc brake confidence, it adapts precisely to every rider and every race.

Size Options:

XS, S, M, L

Frame:

Advanced SL-Grade Composite

Groupset:

SRAM Force AXS E1 12-speed

Wheels:

Giant SLR 1 50 WheelSystem

DISCOVER

FULL-SPEED POWER

The new Advanced SL carbon frame is 558 grams lighter than its predecessor, engineered for explosive speed and precise handling at every point on the course. Fully integrated disc brake technology delivers confident cornering and descending, while improved handlebar and seatpost compliance smooths out road vibration — keeping you faster and fresher from start to finish line.

SUPERIOR AERODYNAMICS

CFD analysis and wind tunnel testing guided the development of the new elliptical-section tube shapes, delivering a 5.9-watt aerodynamic advantage over the previous generation. The integrated hydration reservoir, aerodynamic water bottle, and top-tube supply box have all been aerodynamically optimized to form a seamless, drag-minimized supply system built into the bike itself.

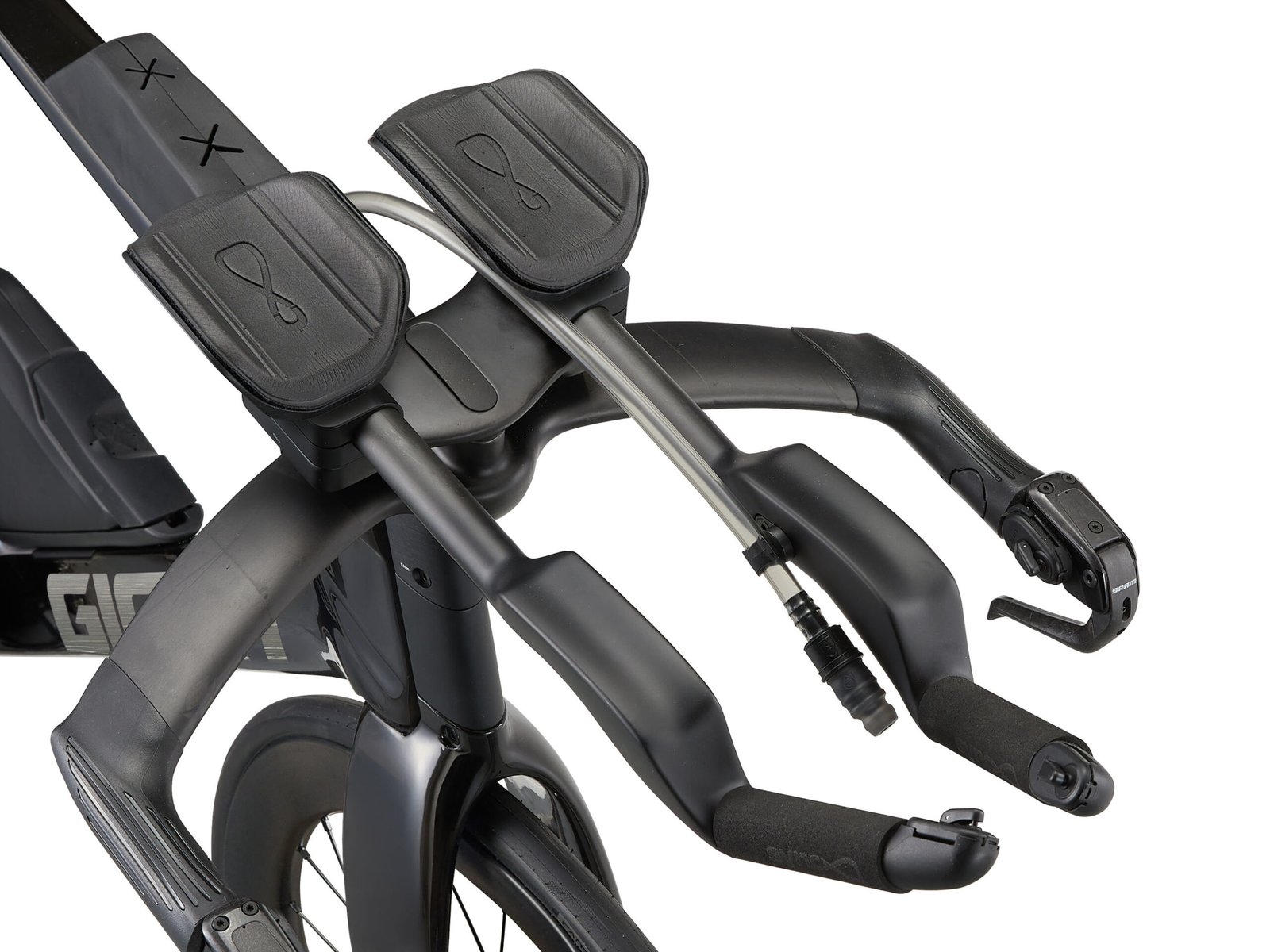

PERSONALIZED COCKPIT PRECISION

The redesigned cockpit system offers 24 times more adjustment positions than the previous generation — covering stack, extension, angle, and width — all secured via a simple two-screw mechanism. Four seatpost offset positions across a 51mm total range allow riders of all body types to dial in the most efficient, powerful, and comfortable position for any race format.

Equipment

SizeXS, S, M, L
ColorCarbon / Matte Carbon
FrameAdvanced SL-Grade Composite, 12×142mm thru-axle, disc
ForkAdvanced SL-Grade Composite, Full-Composite Steerer, 12×100mm thru-axle, disc
HandlebarsAeroDrive Base Bar with Sync Armrest Set, 10° and 15° extension wedge
StemAeroDrive Integrated Stem
SeatpostTrinity Composite
SaddleGiant Contact SL Tri
Arm Rest KitSync Armrest Set
Shift GripSRAM eTap Clics (extension-mounted) / SRAM eTap Blips (basebar-mounted)
Front transmissionSRAM Force AXS E1
Rear transmissionSRAM Force AXS E1
Brake systemSRAM S-900 Aero Hydraulic, SRAM PaceLine X Rotors — 160mm [F] / 140mm [R]
Brake gripSRAM S-900 Aero AXS
FlywheelSRAM Force, 12-speed, 10–33T
ChainSRAM Force E1
Large chainringSRAM Force AXS 37/50T with SRAM Power Meter — XS: 160mm, S: 165mm, M: 170mm
Bottom BracketSRAM DUB, Press Fit
RimsGiant SLR 1 50 WheelSystem — 40mm [F] / 40mm [R]
Hub[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle / [R] Giant Low Friction Hub, 30T ratchet driver, CenterLock, 12mm thru-axle
SpokesSapim CX-Ray
TireCADEX Aero, Tubeless, 700×25c (26.5mm), folding
Max tire clearance30mm
OtherTT storage, hydration kit, computer mount, tubeless prepared
WeightFor the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

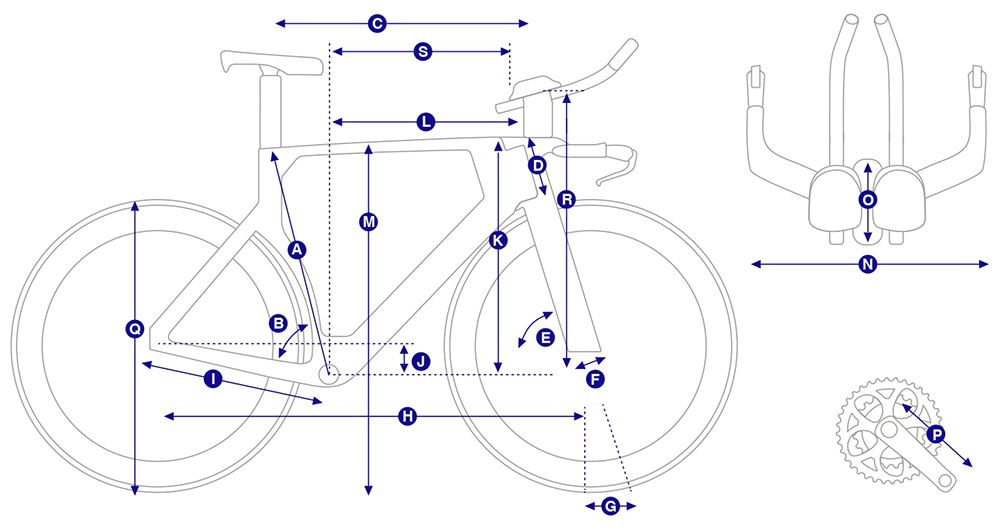

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement XS S M L
A Length of the seat (upright) tube (mm) 477508538565
B The angle of the seat (riser) 77.0°77.0°77.0°77.0°
C Top tube length (mm) 510530554579
D Head tube length (mm) 85105125145
E Head tube angle 72.0°73.0°73.0°73.0°
F Fork (mm) 40404040
G Trail (mm) 69636363
H Front and rear track (mm) 97498810131039
I Rear fork length (mm) 405405405405
J Bottom drop height (mm) 70707070
K Head bowl to bracket height (mm) 490513532551
L Head bowl to bracket length (mm) 397412432452
M Upper tube to ground height (mm) 758786814838
N Handle width (mm) 400400400400
P Crank length (mm) 160165170172.5
Q Wheelset size 700C700C700C700C
R Elbow height range (mm) (TRI) 629–709 | (TT) 582–662 (TRI) 653–733 | (TT) 605–685 (TRI) 672–752 | (TT) 624–704 (TRI) 691–771 | (TT) 643–723
S Elbow forward reach (mm) (TRI) 323–398 | (TT) 339–414 (TRI) 340–415 | (TT) 355–430 (TRI) 360–435 | (TT) 375–450 (TRI) 380–455 | (TT) 395–470
V Pad reach min (mm) 323338358378
W Pad reach max (mm) 398413433453
