Mud-Ready ATV Built for Maximum Traction, Clearance, and Control

The CFORCE 1000 MV is engineered for riders who push deeper into the mud and demand serious off-road capability. Powered by a 963cc V-Twin engine and developed specifically for mud-focused performance, it combines strong power delivery, advanced cooling, specialized protection, and oversized mud tires for confident progression through the toughest terrain. With increased ground clearance, adjustable suspension, and practical storage solutions, the CFORCE 1000 MV is built to perform when conditions get extreme.

Engine:

963cc V-Twin Engine

Max Torque:

85N·m

Fuel Supply:

Bosch EFI

Ground Clearance:

334 mm

Maximum Power:

90 hp

Capability:

Mud Ready

DISCOVER

BIG-BORE V-TWIN PERFORMANCE

The 963cc V-Twin engine delivers 90 hp and 85N·m of torque, supported by a 22% enhanced H gear ratio and finely tuned OMNIDRIVE™ CVT calibration for strong, consistent power delivery in demanding terrain.

ADVANCED COOLING AND PROTECTION

A relocatable radiator with three-position adjustment, quick-release mudguard, and durable HDPE skid plates help maintain performance and protect key components under heavy mud and high-load conditions.

EXTREME MUD CAPABILITY

With 334 mm of ground clearance, 30-inch mud tires, adjustable piggyback gas shocks, and an elevated winch for self-recovery, the CFORCE 1000 MV is purpose-built for traction, control, and confidence in deep mud.

Equipment

Engine
V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve, 963cc

Fuel system
Bosch EFI

Maximum power
90hp @ 7500rpm

Maximum torque
85N·m @ 5500rpm

Transmission
OMNIDRIVE™ CVT

Drive system
2WD/4WD/4WD differential lock

Ground clearance
334mm

Payload capacity
195kg

Fuel capacity
26L

Rear rack capacity
90kg

Storage

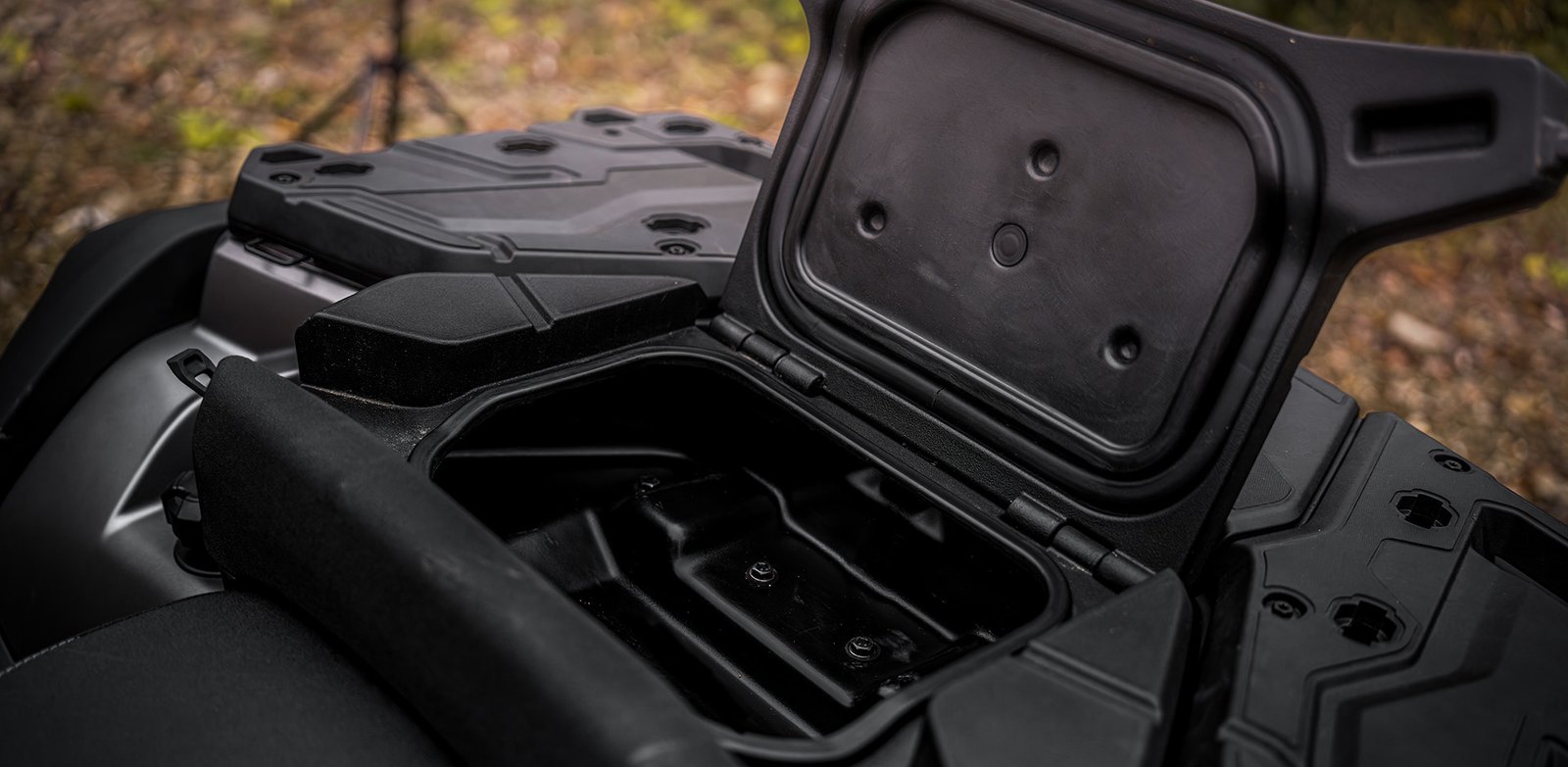

14.5L waterproof storage box

Cooling system
Relocatable radiator with three-position adjustable angles and quick-release mudguard

Recovery equipment
Elevated winch for self-rescue

Protection
Mud straps, diagonal footrests, and durable HDPE skid plates

Brake system
Four-wheel hydraulic disc brakes

Front suspension
High clearance A-arm independent, 185mm travel

Rear suspension
Trailing arm independent, 236mm travel

Shock absorber
Piggyback gas shock absorbers, compression/rebound adjustable

Rims
14-inch beadlocks alloy

Front tire
30X9.00 R14

Rear tire
30X11.00 R14

Color
Twilight Blue / Granite Ridge

TECHNICAL SPECIFICATIONS

ENGINE

Specification Details
Engine Type V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve
Displacement 963cc
Maximum Power 90hp @ 7500rpm
Maximum Torque 85N·m @ 5500rpm
Fuel Supply Bosch EFI
Transmission OMNIDRIVE™ CVT

DIMENSIONS & WEIGHT

Specification Details
Length x Width x Height 2491 x 1370 x 1390mm
Wheelbase 1480mm
Minimum Ground Clearance 334mm
Dry Weight 500kg
Payload Capacity 195kg
Fuel Capacity 26L
Rear Rack Capacity 90kg
Storage Capacity 14.5L waterproof storage box

CHASSIS

Specification Details
Drive 2WD/4WD/4WD differential lock
Brake Four-wheel hydraulic disc brakes
Front Suspension High clearance A-arm independent, 185mm travel
Rear Suspension Trailing arm independent, 236mm travel
Shock Absorber Piggyback gas shock absorbers, compression/rebound adjustable
Rim 14-inch beadlocks alloy
Front Tire 30X9.00 R14
Rear Tire 30X11.00 R14

COLORS

Option Details
Available Colors Twilight Blue / Granite Ridge
