The Ultimate Aero Race Machine — Built to Win at Every Speed

The redesigned Propel Advanced SL 0 Campagnolo is engineered to cut through wind resistance and maximize wattage output across every dimension of speed. Whether attacking on a flat, chasing a breakaway, or sprinting to the finish, it delivers peak aerodynamic performance, elite power transmission, and a smoother, faster ride — from the first pedal stroke to the final meter.

Size Options:

XS, S, M, ML

Frame:

Advanced SL-Grade Composite

Groupset:

Campagnolo Super Record 13

Wheels:

CADEX Max 50 WheelSystem

DISCOVER

INSTANT EXPLOSIVE SPEED

The new Propel Advanced SL delivers an immediate, unfiltered power response when it matters most — attacking, chasing, or sprinting. Compared to the previous generation, overall system weight is reduced by 355g, torsional rigidity improved by 14.2%, and pedaling rigidity by 14.8%, ensuring every watt of effort translates directly into forward acceleration.

SUSTAINED AERODYNAMIC EFFICIENCY

Full-vehicle compliance engineering makes the Propel Advanced SL as smooth as it is fast. The Vector one-piece seatpost improves rear compliance by 25%, while the integrated cockpit and front fork absorb front-end vibration with up to 15% better compliance. Expanded tire compatibility — up to 32mm — further reduces fatigue without compromising top-end speed.

PEAK AERODYNAMIC PERFORMANCE

The AeroSystem frame, integrated cockpit, CADEX Max 50 wheel system, and CADEX Aero tubeless tires form a unified, drag-minimizing system. By combining reduced linear aerodynamic resistance, lower wheel rotational drag, and minimized tire rolling resistance, the total energy savings reach up to 18.4 watts — every element engineered to keep you faster, longer.

Equipment

SizeXS, S, M, ML
ColorCarbon Fiber Black
FrameAdvanced SL-Grade Composite, 12×142mm thru-axle, disc
ForkAdvanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, 12×100mm thru-axle, disc

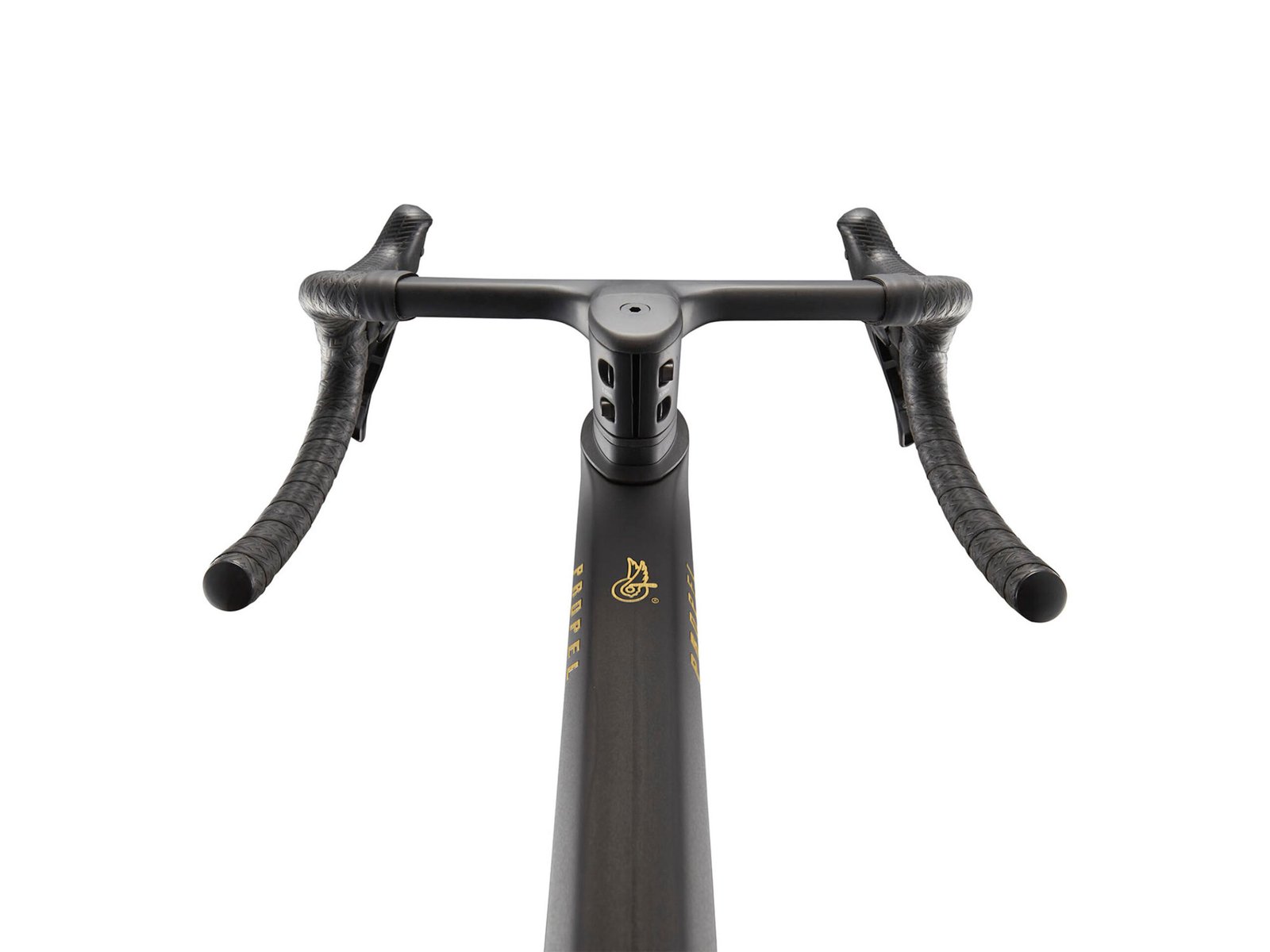

HandlebarsGiant Contact SLR 0 Aero Integrated — XS/S: 380/360mm, M/ML: 400/370mm
StemGiant Contact SLR 0 Aero Integrated — XS: 80mm, S: 90mm, M: 100mm, ML: 110mm
SeatpostGiant Integrated Seatpost, -5/+15mm offset
SaddleCADEX AMP 3D
Shift GripCampagnolo Super Record 13 Ergopower Controls
Front transmissionCampagnolo Super Record 13 Front Derailleur
Rear transmissionCampagnolo Super Record 13 Direct Rear Derailleur
Brake systemCampagnolo Super Record 13 Caliper — Campagnolo Rotor 03, 160mm [F] / 140mm [R]
Brake gripCampagnolo Super Record 13 Ergopower Controls
FlywheelCampagnolo Ultra Titanium Cassette, 11–36T
ChainCampagnolo Super Record 13 Chain

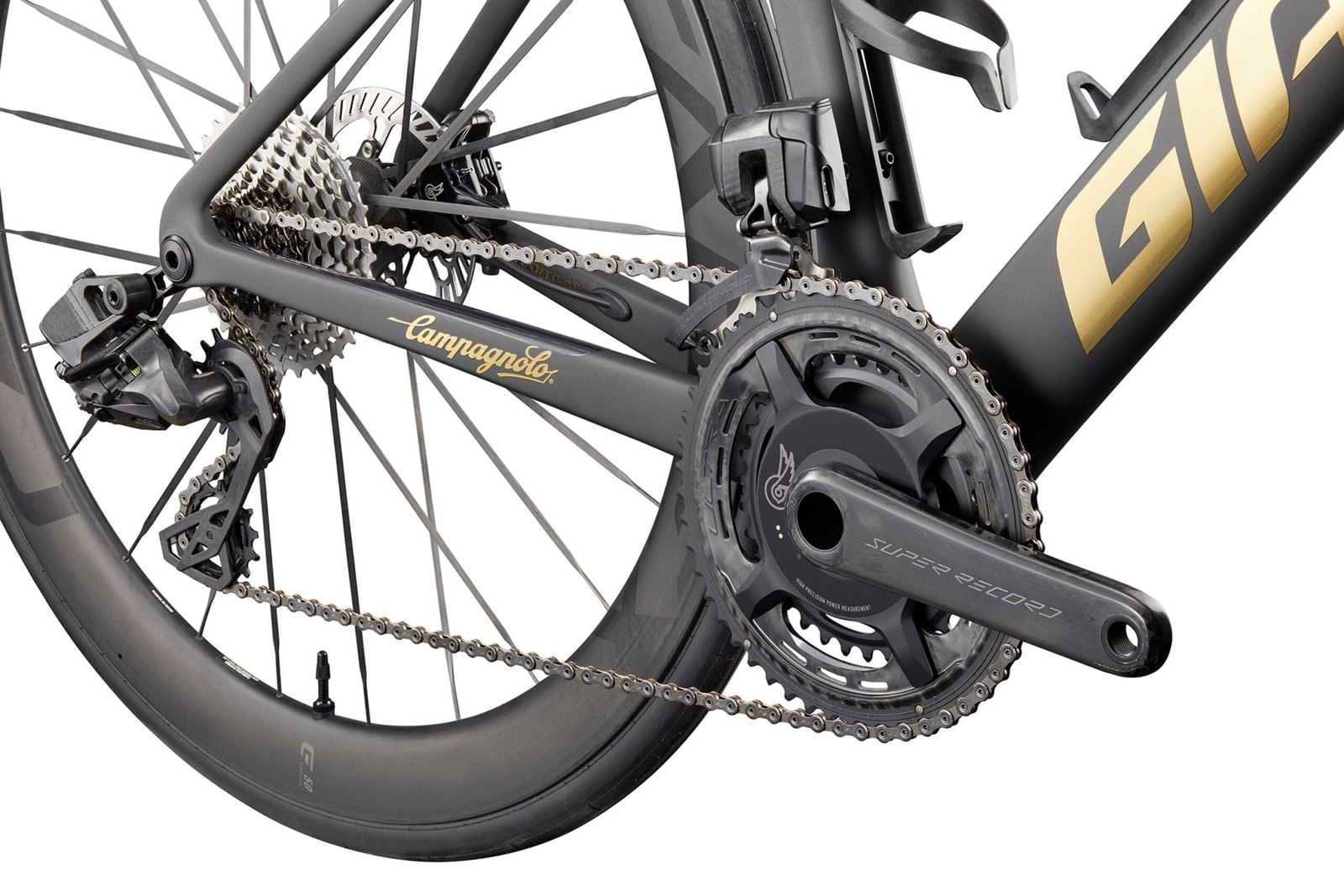

Large chainringSuper Record 13 Crankset with Power Meter, Ultra Carbon Chainring 50×34T — XS/S: 165mm, M/ML: 170mm
Bottom BracketUltra BM Ceramic Bearings (USB)
RimsCADEX Max 50 WheelSystem — 50mm [F] / 50mm [R]
Hub[F] CADEX R3 Aero Hub, CenterLock, 12mm thru-axle / [R] CADEX R3-C48 Aero Hub, 48T ratchet driver, CenterLock, 12mm thru-axle
SpokesCADEX Super Aero Carbon Spoke
TireCADEX Aero, Tubeless, 700×28c, folding
WeightFor the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

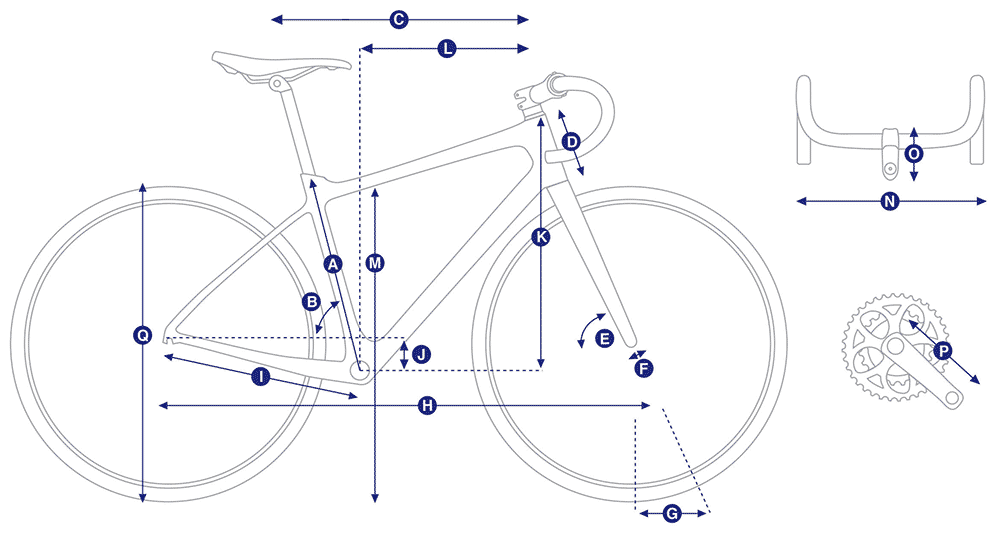

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement XS S M ML
A Length of the seat (upright) tube (mm) 680710740770
B The angle of the seat (riser) 74.5°74.0°73.5°73.0°
C Top tube length (mm) 520535550565
D Head tube length (mm) 120130145165
E Head tube angle 71.0°72.3°73.0°73.0°
F Fork (mm) 45454545
G Trail (mm) 70.562.557.857.8
H Front and rear track (mm) 976977980991
I Rear fork length (mm) 405405405405
J Bottom drop height (mm) 72707067
K Head bowl to bracket height (mm) 517528545562
L Head bowl to bracket length (mm) 376383388393
M Upper tube to ground height (mm) 734755775794
N Handle width (mm) 380380400400
O Tap length (mm) 8090100110
P Crank length (mm) 165165170170
