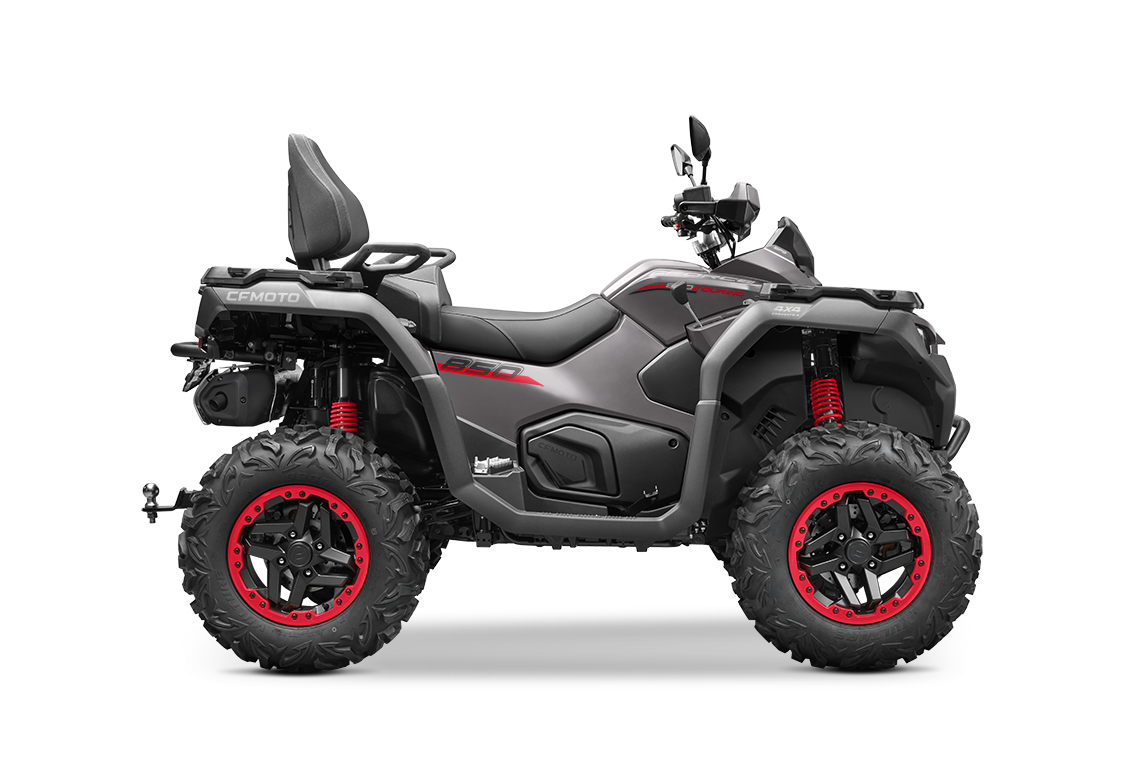

CFORCE 850 TOURING
Top-Class Touring ATV Built for Power, Technology, and Capability
The CFORCE 850 TOURING is engineered for riders who demand more from every journey. With a high-output 800cc V-Twin engine, advanced rider technology, and serious towing and rack capacity, it delivers the strength, control, and durability needed for challenging terrain and demanding work. Designed for two-up comfort and built with premium utility features throughout, the CFORCE 850 TOURING is ready for long days on the trail, around the property, or wherever the ride leads.
Engine:
800cc V-Twin Engine
Tow Capacity:
820 kg
Fuel Supply:
Bosch EFI
Ground Clearance:
285 mm
Maximum Power:
75 hp
Rack Capacity:
135 kg
DISCOVER
Equipment
Engine
V-Twin, liquid-cooled, 4-stroke, SOHC, 8-valve, 800cc
Fuel system
Bosch EFI
Throttle system
Electronic throttle
Maximum power
75hp @ 7500rpm
Maximum torque
70N·m @ 5500rpm
Power modes
Sport / Normal / Work
Transmission
CVT, P-R-N-H-L
Drive system
2WD/4WD/4WD Lock (front differential)
EPS
Triple-Mode EPS
Tow capacity
820kg / 800kg EU
Load capacity
300kg
Rack capacity
135kg total (45kg front / 90kg rear), CF-Connect convertible racks
Fuel capacity
26L
Ground clearance
285mm
Winch
3500lb with synthetic rope
Display
7-inch TFT gauge
Lighting
High-intensity LED lights
Color
Nebula Black / Granite Ridge / TT Kanati / Lava Orange / Royal Blue
Brake system
Four-wheel hydraulic disc brakes, single-piston caliper
Front suspension
High-clearance A-arm independent, 230mm travel
Rear suspension
Trailing arm independent, 236mm travel
Shock absorber
Coil spring shock absorbers with oil dampening
Rims
14-inch alloy / 14-inch alloy Beadlock (premium)
Tires
Front: 26×9.00-14 / Rear: 26×11.00-14
TECHNICAL SPECIFICATIONS
ENGINE
| Specification | Details |
|---|---|
| Engine Type | V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve |
| Displacement | 800cc |
| Maximum Power | 75hp @ 7500rpm |
| Maximum Torque | 70N·m @ 5500rpm |
| Fuel Supply | Bosch EFI |
| Power Modes | Sport / Normal / Work |
| Transmission | CVT, P-R-N-H-L |
DIMENSIONS & WEIGHT
| Specification | Details |
|---|---|
| Length x Width x Height | 2445 x 1264 x 1450mm |
| Wheelbase | 1480mm |
| Ground Clearance | 285mm |
| Curb Weight | 465kg |
| Towing Capacity | 820kg / 800kg EU |
| Load Capacity | 300kg |
| Carry Capacity | 45kg / 90kg, CF-Connect with convertible racks |
| Winch | 3500lbs |
| Fuel Capacity | 26L |
CHASSIS
| Specification | Details |
|---|---|
| Drive | 2WD/4WD/4WD Lock (front differential) |
| EPS | Triple-Mode EPS |
| Brake | Four-wheel hydraulic disc brakes, single-piston caliper |
| Front Suspension | High-clearance A-arm independent, 230mm travel |
| Rear Suspension | Trailing arm independent, 236mm travel |
| Shock Absorber | Coil spring shock absorbers with oil dampening |
| Rim | 14-inch alloy / 14-inch alloy Beadlock (premium) |
| Tire | Front: 26×9.00-14 / Rear: 26×11.00-14 |
COLORS
| Option | Details |
|---|---|
| Available Colors | Nebula Black / Granite Ridge / TT Kanati / Lava Orange / Royal Blue |
