Aero Road Speed — Lighter, Smoother, and Built for Every Rider

The new Propel Advanced 2 puts extreme road speed within reach of every rider. A lighter, more rigid carbon frame, a full aero-integrated cockpit, and a refined Vector seatpost combine to maximize power transfer, minimize drag, and smooth out the road beneath you — whether you’re pushing the pace solo or competing for the front of the group.

Size Options:

XS, S, M, M/L, L

Frame:

Advanced-Grade Composite

Groupset:

Shimano 105 12-speed

Wheels:

Giant P-A1 Disc Alloy

DISCOVER

INSTANT EXPLOSIVE SPEED

The new Propel Advanced 2 responds with immediate, unfiltered momentum at the critical moments that decide a race. A lighter frameset with enhanced torsional and pedaling rigidity over its predecessor ensures that every attack, acceleration, and sprint translates directly into forward speed — with zero delay between effort and result.

SUSTAINED HIGH-SPEED COMFORT

The redesigned Vector carbon seatpost delivers measurably improved vertical compliance, while the integrated cockpit and Advanced-grade carbon fork effectively absorb front-end vibration. Expanded tire clearance supporting widths up to 32mm further reduces fatigue on long efforts, helping you stay fast and fresh deep into every ride.

PEAK AERODYNAMIC PERFORMANCE

The AeroSystem frame, fully internal-wired integrated cockpit, aerodynamic 50mm wheel system, and Giant Gavia Course tubeless tires form a unified drag-minimizing package. From wind-tunnel-optimized tube shapes to the dedicated aero bottle cage design, every component works in concert to reduce air and rolling resistance — keeping you faster in every condition.

Equipment

SizeXS, S, M, M/L, L
ColorWhite
FrameAdvanced-Grade Composite, 12×142mm thru-axle, disc
ForkAdvanced-Grade Composite, Full-Composite OverDrive Aero Steerer, 12×100mm thru-axle, disc
HandlebarsGiant Contact SL Aero — XS/S: 380/360mm, M/M/L: 400/370mm, L: 420/390mm
Handle gripStratus Lite 2.0
StemGiant Contact SL Aero — XS: 80mm, S: 90mm, M: 100mm, M/L: 110mm, L: 110mm
SeatpostGiant Vector, Composite, -5/+15mm offset
SaddleGiant Fleet SL
Shift GripShimano 105
Front transmissionShimano 105
Rear transmissionShimano 105
Brake systemShimano 105 Hydraulic, Shimano SM-RT64 Rotors — 160mm [F] / 140mm [R]
Brake gripShimano 105 Hydraulic
FlywheelShimano 105, 12-speed, 11–36T
ChainKMC X12L-1
Large chainringShimano 105, 36/52T — XS/S: 165mm, M/M/L: 170mm, L: 172.5mm
Bottom BracketShimano, Press Fit
RimsGiant P-A1 Disc, Alloy
HubGiant P-A1 Disc, 12mm thru-axle
SpokesStainless Steel
TireGiant Gavia Course 0, Tubeless, 700×28c, folding
OtherComputer mount, water bottle cages, tubeless prepared, 32mm max tire size
WeightFor the most accurate weight, consult your authorized Giant store. Actual weight varies by frame size and components.

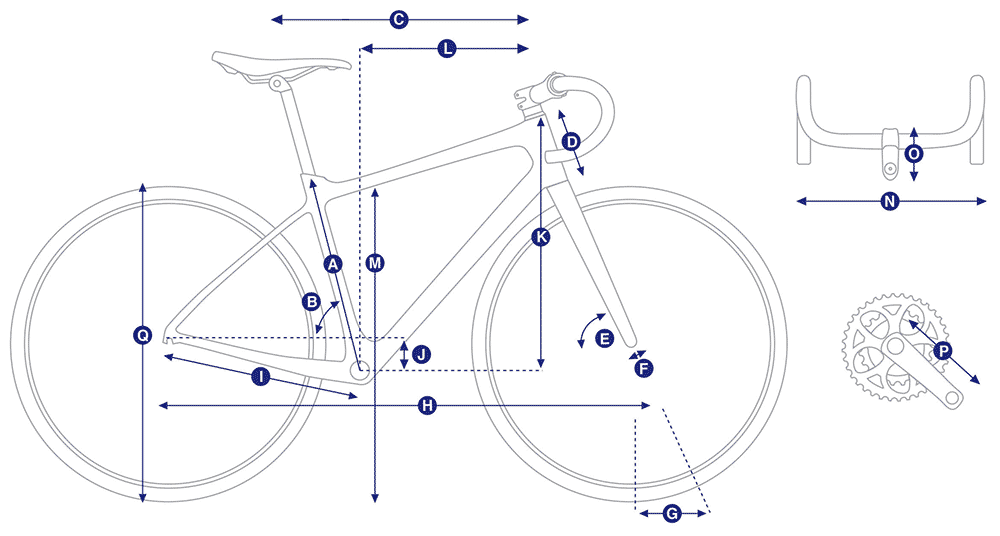

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement XS S M M/L
A Length of the seat (upright) tube (mm) 484505528.5554
B The angle of the seat (riser) 74.5°74.0°73.5°73.0°
C Top tube length (mm) 520535550565
D Head tube length (mm) 115127145165
E Head tube angle 71.5°72.5°73.0°73.0°
F Fork (mm) 45454545
G Trail (mm) 67.861.458.358.3
H Front and rear track (mm) 971973980990
I Rear fork length (mm) 405405405405
J Bottom drop height (mm) 727269.569.5
K Head bowl to bracket height (mm) 515530546565
L Head bowl to bracket length (mm) 377383388392
M Upper tube to ground height (mm) 746764787808
N Handle width (mm) 380380400400
O Tap length (mm) 8090100110
P Crank length (mm) 165165170170
Q Wheelset size 700C700C700C700C
