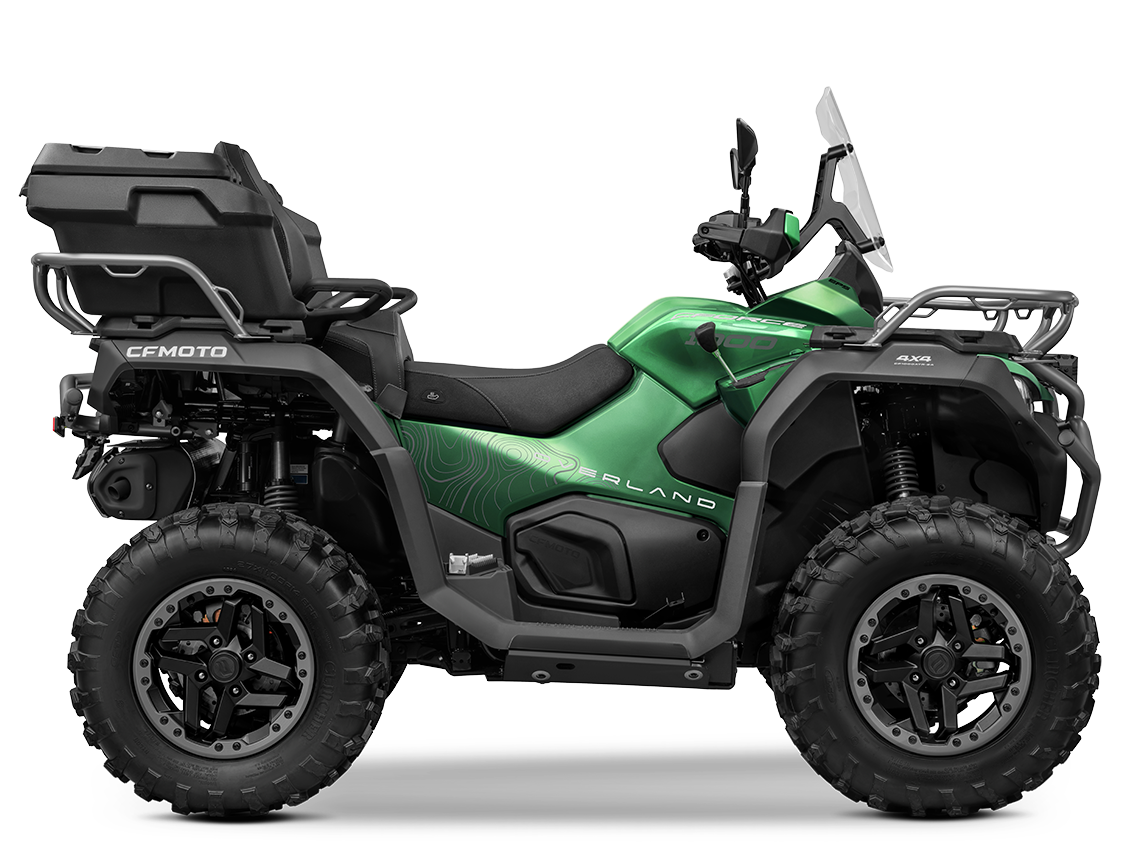

CFORCE 1000 OVERLAND
Adventure-Ready ATV Built for Long-Range Off-Road Exploration
The CFORCE 1000 OVERLAND is built for riders who want to go further with confidence, comfort, and capability. Powered by a 963cc V-Twin engine and equipped with advanced suspension, premium protection, and practical storage solutions, it is designed to handle demanding terrain while supporting extended two-up adventures. From technical trails to weekend escapes, the CFORCE 1000 OVERLAND combines power, control, and overland-focused equipment in one purpose-built package.
Engine:
963cc V-Twin
Max Torque:
85N·m
Fuel Supply:
Bosch EFI
Ground Clearance:
300 mm
Maximum Power:
85 hp
DISCOVER
Equipment
Engine
V-twin, 4-stroke, liquid-cooled, DOHC, 963cc
Fuel system
Bosch EFI
Maximum power
85hp @ 7500rpm
Maximum torque
85N·m @ 5500rpm
Transmission
CVT, P-R-N-H-L
Drive system
2WD/4WD with locking differential
Display
7-inch TFT
EPS
Electronic power steering
Ground clearance
300mm
Payload capacity
300kg
Fuel capacity
26L
Storage
Side cases
Protection
Heavy-duty steel bumpers, HDPE skid plates, aluminum front bash plate
Front fairing
Adjustable windscreen with integrated hand guards
Winch
3,500 lb. winch with synthetic rope
Brake system
Four-wheel hydraulic disc brakes, single-piston caliper
Front suspension
High clearance A-arm independent, 230mm travel
Rear suspension
Trailing arm independent, 236mm travel
Shock absorber
Coil spring shock absorbers with oil dampening
Rims
14-inch alloy
Front tire
27×9 R14
Rear tire
27×11 R14
Color
Forest Green / Desert Tan
TECHNICAL SPECIFICATIONS
ENGINE
| Specification | Details |
|---|---|
| Engine Type | V-twin, 4-stroke, liquid-cooled, DOHC |
| Displacement | 963cc |
| Maximum Power | 85hp @ 7500rpm |
| Maximum Torque | 85N·m @ 5500rpm |
| Fuel Supply | Bosch EFI |
| Transmission | CVT, P-R-N-H-L |
DIMENSIONS & WEIGHT
| Specification | Details |
|---|---|
| Engine Type | V-twin, 4-stroke, liquid-cooled, DOHC |
| Displacement | 963cc |
| Maximum Power | 85hp @ 7500rpm |
| Maximum Torque | 85N·m @ 5500rpm |
| Fuel Supply | Bosch EFI |
| Transmission | CVT, P-R-N-H-L |
CHASSIS
| Specification | Details |
|---|---|
| Drive | 2WD/4WD with locking differential |
| Brake | Four-wheel hydraulic disc brakes, single-piston caliper |
| Front Suspension | High clearance A-arm independent, 230mm travel |
| Rear Suspension | Trailing arm independent, 236mm travel |
| Shock Absorber | Coil spring shock absorbers with oil dampening |
| Rim | 14-inch alloy |
| Front Tire | 27×9 R14 |
| Rear Tire | 27×11 R14 |
COLORS
| Option | Details |
|---|---|
| Available Colors | Forest Green / Desert Tan |
