Lightweight Carbon 29er Hardtail for Fast XC

XTC Advanced 29 3 is a pure XC race hardtail built for efficient climbing and confident handling on fast singletrack. Its Advanced-grade composite frame, balanced 29er geometry, and race-ready Shimano Deore 1×12 drivetrain work together to deliver responsive acceleration, precise control, and reliable performance across varied XC terrain.

Size Options:

S, M, L

Frame:

Advanced-Grade Composite

Groupset:

Shimano Deore 1×12

Wheels:

Giant XCT 29, alloy

DISCOVER

LIGHTWEIGHT CARBON EFFICIENCY

The Advanced-grade composite hardtail frame delivers a stiff, responsive platform that accelerates quickly and climbs efficiently. A Boost 12×148mm rear axle and press-fit bottom bracket improve power transfer, so more of your effort goes straight into forward speed.

STABLE, PRECISE XC HANDLING

Modern XC geometry with a 69.5–70° head tube angle, 760mm wide bar, and quality hydraulic disc brakes gives you confident control on descents and technical sections. The Giant Crest 34 RRL fork and balanced chassis keep the bike composed when the trail gets rough.

FAST-ROLLING 29ER PERFORMANCE

Optimized around 29-inch wheels, the XTC Advanced 29 3 carries speed over roots, rocks, and rough terrain. Short 425mm chainstays and a dialed cockpit position strike the right balance between stability at speed and agility in tight singletrack.

Equipment

SizeS, M, L
ColorMars Dust
FrameAdvanced-grade composite, 12×148mm thru-axle
ForkGiant Crest 34 RRL
ShockN/A (hardtail)
HandlebarsGiant Contact SL XC, 780×31.8mm
Handle gripGiant XC Pro — S: 32mm, M: 32mm, L: 34mm
StemGiant Contact
SeatpostGiant Alloy 30.9
SaddleGiant Grit Sport
PedalsPlatform [GC, GT]
Shift GripShimano Deore, 1×12
Front transmissionN/A
Rear transmissionShimano Deore
Brake systemShimano BR-MT410 hydraulic disc, Shimano RT-26 rotors — 180mm [F] / 160mm [R]
Brake gripShimano MT-401
FlywheelShimano Deore, 12-speed, 10–51T
ChainKMC X-12
Large chainringPraxis Cadet M24, Boost, 32T
Bottom BracketPraxis, Press Fit
RimsGiant XCT 29, 28H
HubAlloy, sealed
SpokesSapim
Tire[F] Maxxis Rekon Race 29×2.4 / [R] Maxxis Rekon Race 29×2.25, foldable, TLR, EXO
OtherTubeless prepared, 2.25" max tire size, 38T max chainring size
WeightFor the most accurate weight, please consult your authorized Giant store. Actual weight varies by frame size and components.

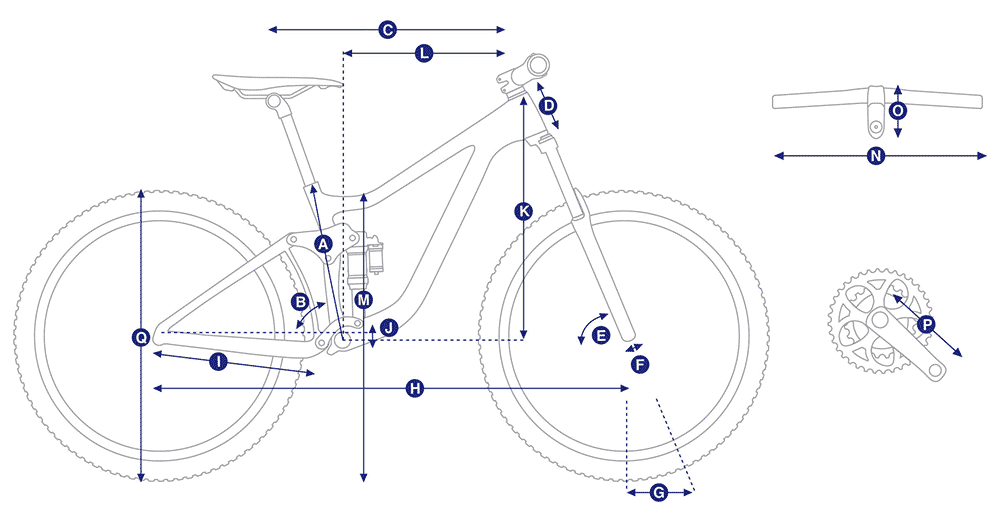

Frame geometry

TECHNICAL SPECIFICATIONS

Measurement S M L
A Length of the seat (upright) tube (mm) 380431475
A1 Seat post insertion depth (mm) 165220260
B Seat tube angle 73.5°73.5°73.5°
C Top tube length (mm) 595614635
D Head tube length (mm) 9595105
E Head tube angle 69.5°69.5°70.0°
F Fork (mm) 434343
G Trail (mm) 94.994.994.9
H Front and rear track (mm) 108711061128
I Rear fork length (mm) 425425425
J Bottom drop height (mm) 585858
K Head bowl to bracket height (mm) 604604613
L Head bowl to bracket length (mm) 416435453
M Upper tube to ground height (mm) 737764791
N Handle width (mm) 760760760
O Stem length (mm) 607080
P Crank length (mm) 170175175
Q Wheelset size 29″29″29″
